Ensign Below Ground Drainage
About the solution
Description
High-performance cast iron pipes and fittings designed for below ground use. Smartly designed to drain wastewater away when exposed to standard and/or hot and/or aggressive discharge. Highly resistant to external stresses that a below-ground application can put on a pipe system due to its strength and its Zinc coating it can resist such an aggressive environment.
Recommended use
The Ensign Drain range is the first choice for all below ground applications to minimise risk and maximise life.
Dimensions
- - Diameter: 50 to 600mm
- - Wide range of fittings
About the solution
Description
High-performance cast iron pipes and fittings designed for below ground use. Smartly designed to drain wastewater away when exposed to standard and/or hot and/or aggressive discharge. Highly resistant to external stresses that a below-ground application can put on a pipe system due to its strength and its Zinc coating it can resist such an aggressive environment.
Recommended use
The Ensign Drain range is the first choice for all below ground applications to minimise risk and maximise life.
Dimensions
- - Diameter: 50 to 600mm
- - Wide range of fittings
MAJOR BENEFITS :
- - Compliant with standard EN 877
- - Performance guaranteed with marks delivered by the Kitemark
- - Long-lasting operational safety thanks to the robustness and stiffness (around 700 kN.m) of cast iron and the use of flexible mechanical couplings
- - Long-life due to the high-quality application of a Zinc layer in the coating process
- - Ease of installation due to mechanical couplings assembled with simple tools.
COATINGS :

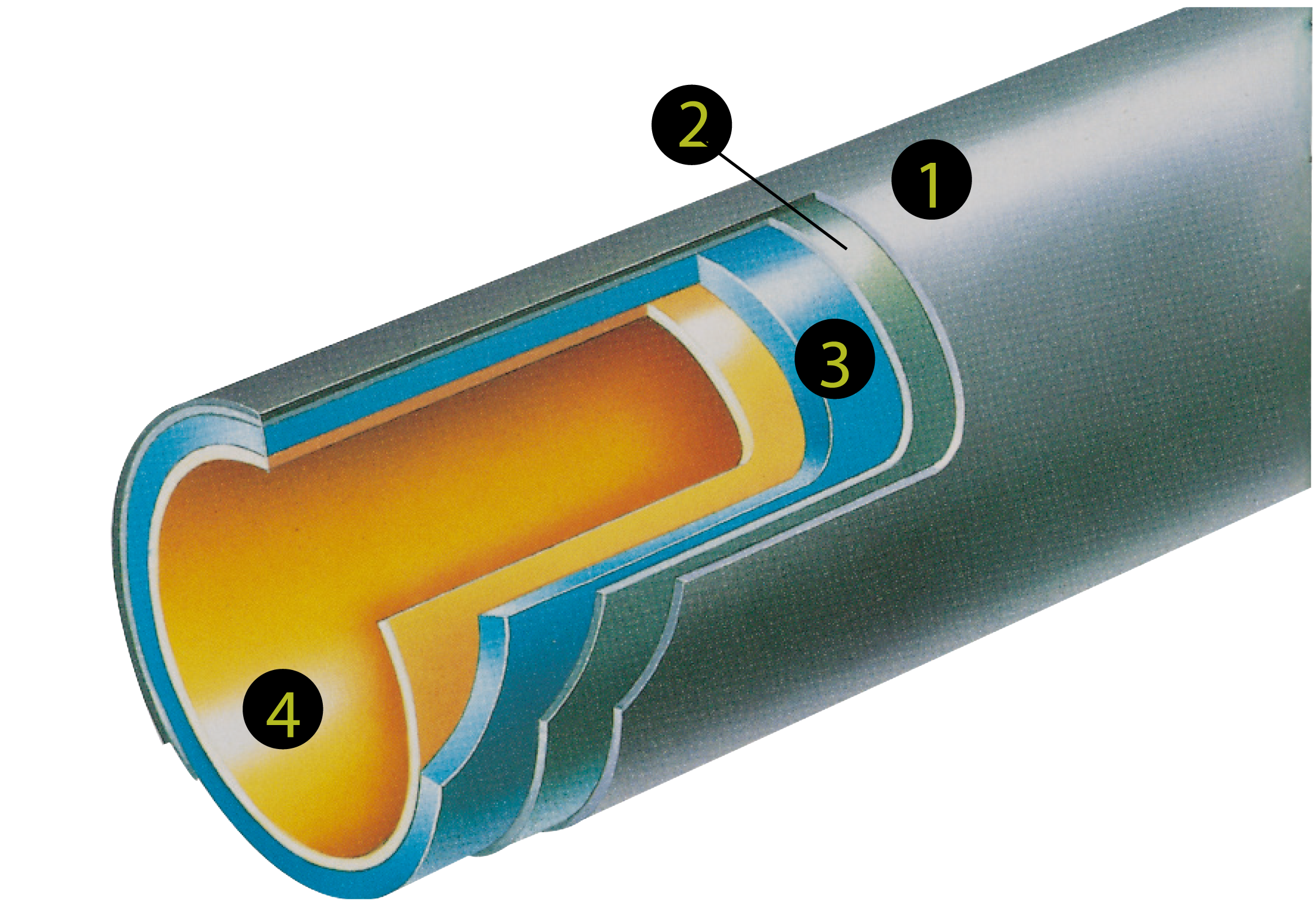

Pipes :
- External coating: Grey, anti-corrosive acrylic primer paint, average dry film thickness of 40 µm
- Anti-corrosive zinc coating of 130gr/m2
- Cast-iron made with De Lavaud process
- Internal coating: Two-component ochre coloured epoxy coating, average dry film thickness of 250 µm.
Fittings :
Externally and internally coated with a grey powder epoxy to an average thickness of 150 µm.
COATINGS :
Pipes :
- External coating: Grey, anti-corrosive acrylic primer paint, average dry film thickness of 40 µm
- Anti-corrosive zinc coating of 130gr/m2
- Cast-iron made with De Lavaud process
- Internal coating: Two-component ochre coloured epoxy coating, average dry film thickness of 250 µm.
Fittings :
Externally and internally coated with a grey powder epoxy to an average thickness of 150 µm.
CHEMICAL & CORROSION RESISTANCE :
Hot water resistance : 24h at 95°C
Thermal cycle resistance: 1500 cycles between 15°C and 93°C
Chemical resistance for 2 ≤pH ≤13, up to 80°C.
Salt spray resistance : 1500h
ENVIRONMENTAL DATA
- - Recycled content: 99%
- - 100% Recyclable.
PRODUCT MARKING :
Pipes:
Fittings:
