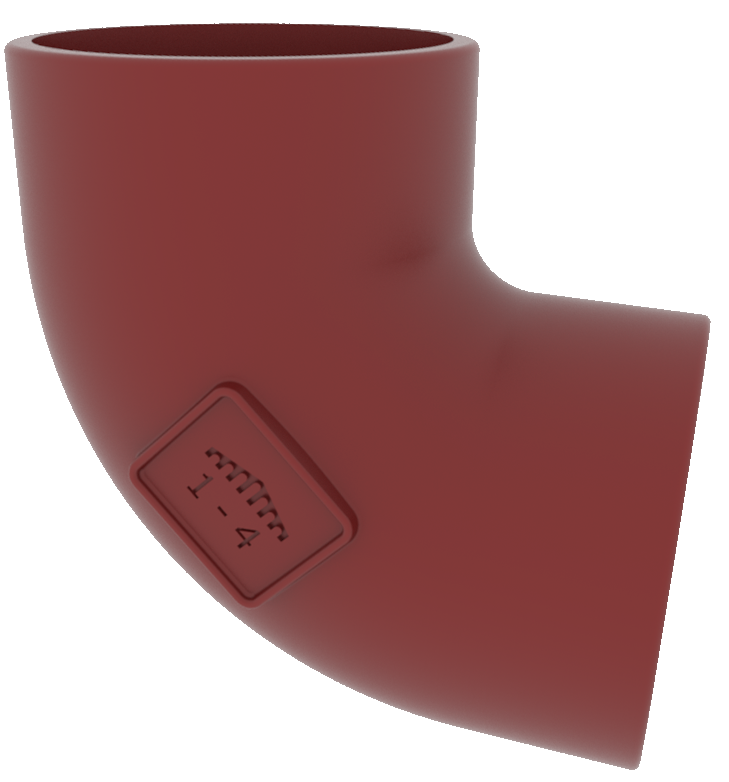

EF002 Bend Ensign Soil Short Radius 100mm x 88º

Article	DN	dn	Angle	Length	Height	Width	Weight
191437	50		88	104	107	58	0.8
191442	70		88	130	132	78	1.4
191447	100		88	166	169	110	2.2
191454	125		88	194	197	135	2.9
191459	150		88	227	230	160	4.3
191462	200		88	288	291	210	8.1
191463	250		88	360	363	274	13.5
191431	300		88	427	431	326	27.7
265224	400		88	644	651	429	59

All dimensions are in mm and nominal weights are in kg

Product description

The Ensign Soil Short Radius Bends in cast iron are available in a range of sizes and angles to suit you project needs. Used individually or in combinations you will be able to meet most of the bend requirements.

Recommended use :

• Domestic use
• Fat Wastewater
• Hot effluents
• Hydrocarbon Wastewater
• Rainwater
• Runoff water
• Industrial Wastewater

Major benefits :

The Ensign cast iron soil bends allow a change of direction of the transported fluid, while keeping the quality and the reliability, thanks to the epoxy internal coating.

Technical infos

• Hot water resistance: 24h at 95°C.
• Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
• Chemical resistance for 2 ≤ pH ≤ 12.
• Salt spray resistance internal coating: more than 1500 h

Coating description :

• External coating: Red powder Epoxy Resin average dry film thickness 70 microns
• Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns

• Material : Cast Iron
• Industry product standards : BS EN877
• Range Fire Classification : Euroclass A1
• Acoustic Performance : Cast Iron performance Best in class Lsc ≤ 10 dB(A) & LaA = 47 dB(A) according to EN 14366 with 2L/s
• Percentage of Recycled Content : 99%
• Recycling Information : Virtually 100% Recyclable
