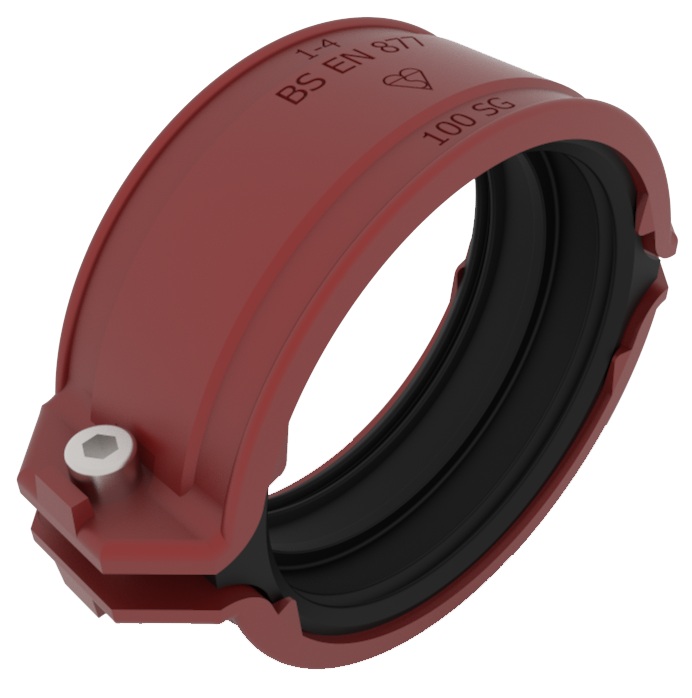

EC002 Coupling Ensign Soil Ductile Iron 100mm
Code article : 156634
Description
These couplings are for gravity applications the Ensign systems are jointed by unique two piece ductile iron couplings, which offer high performance and are quick and easy to install. These couplings will provide a level of pressure which is based on accidental static pressure.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 156398 | 50 | - | 0.6 | ||||
| 156493 | 70 | - | 0.6 | ||||
| 156634 | 100 | - | 0.8 | ||||
| 156777 | 125 | - | 0.9 | ||||
| 156888 | 150 | - | 1.7 | ||||
| 156998 | 200 | - | 3.5 | ||||
| 175552 | 250 | - | 4.4 | ||||
| 175510 | 300 | - | 5.4 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
These couplings are for gravity applications the Ensign systems are jointed by unique two piece ductile iron couplings, which offer high performance and are quick and easy to install. These couplings will provide a level of pressure which is based on accidental static pressure.
Recommended use :
- Domestic use
- Fat Wastewater
- Hot effluents
- Hydrocarbon Wastewater
- Rainwater
- Runoff water
- Industrial Wastewater
Major benefits :
Ensign soil ductile iron two-part couplings for connecting spigot ended cast iron pipes and fittings which incorporate nibs to provide built-in electrical continuity and includes an EPDM gasket as standard. 50 to 125mm diameter are assembled utilising two socket cap screws and nuts (M12), 150 to 250mm diameter are assembled utilising four socket cap screws and nuts and the 300mm is a four-part assembly utilising four socket cap screws and nuts, all driven by a 6mm allen key. The couplings are evenly assembled using a rachet spanner to leave a gap of 2-3mm, or if using a torque wrench set at 20 Nm minimum. The maximum angular deflection supported between two assembled elements is 3 °.Technical infos
- Hot water resistance: 24h at 95°C.
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
- Chemical resistance for 2 ≤ pH ≤ 12.
- Salt spray resistance internal coating: more than 1500 h
Coating description :
- External coating: Powder Epoxy Resin average dry film thickness 70 microns
- Internal coating: Powder Epoxy Resin average dry film thickness 70 microns
- Material : Ductile Iron
- Industry product standards : BS EN877
- Range Fire Classification : Euroclass A1
- Acoustic Performance :
- Percentage of Recycled Content : 97%
- Recycling Information : Virtually 100% Recyclable
