TD02 Coupling Timesaver Drain Transitional Ductile Iron 100mm
Code article : 191297
Description

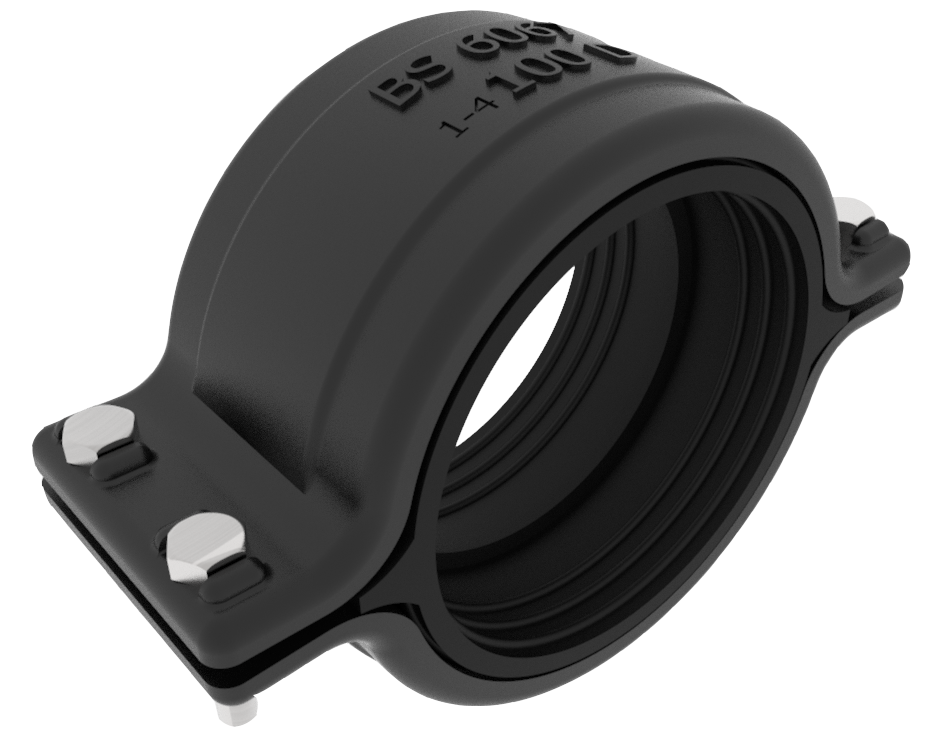

TD02 Timesaver Drain Transitional Ductile Iron Coupling 100mm. Timesaver Drain ductile iron two-part transitional couplings for connecting to above ground soil pipework of the same diameter but with a smaller OD. The couplings are assembled utilising four M8 stainless steel nuts and bolts. The couplings are evenly assembled using a rachet spanner and deep socket, to leave a gap of 2-3mm, or if using a torque wrench set at 20 Nm minimum. The maximum angular deflection supported between two assembled elements is 5°.
Product variants
Article | DN | dn | Angle | Length | Height | Width | Weight |
---|---|---|---|---|---|---|---|
191297 | 100 | - | 2.8 | ||||
191298 | 150 | - | 3.6 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
TD02 Timesaver Drain Transitional Ductile Iron Coupling 100mm. Timesaver Drain ductile iron two-part transitional couplings for connecting to above ground soil pipework of the same diameter but with a smaller OD. The couplings are assembled utilising four M8 stainless steel nuts and bolts. The couplings are evenly assembled using a rachet spanner and deep socket, to leave a gap of 2-3mm, or if using a torque wrench set at 20 Nm minimum. The maximum angular deflection supported between two assembled elements is 5°.
Recommended use :
- Domestic use
- Fat Wastewater
- Aggressive effluents
- Hot effluents
- Hydrocarbon Wastewater
- Industrial Wastewater
- Rainwater
- Runoff water
Major benefits :
100mm Timesaver drain to soil pipework with OD 160mmTechnical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
Coating description :
- Coating: Black Water Based Primer to an average thickness of 70microns.
- Material : Ductile Iron
- Industry product standards : BS437
- Range Fire Classification : Euroclass A1
- Acoustic Performance :
- Percentage of Recycled Content : 97%
- Recycling Information : Virtually 100% Recyclable
