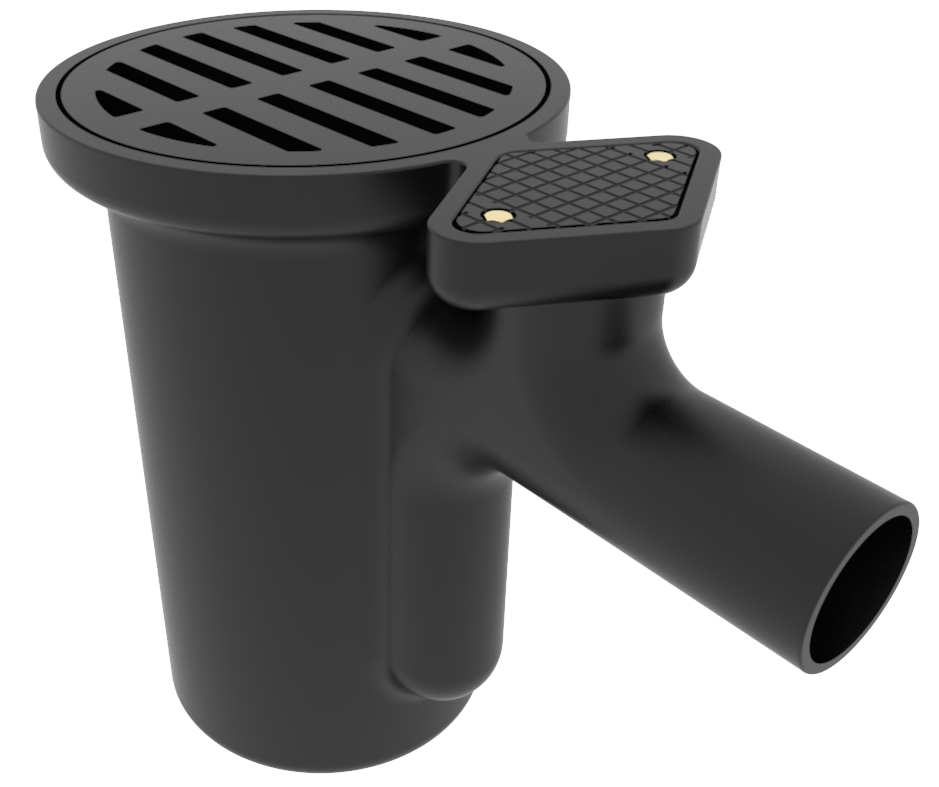

TD554 Gully Trap Timesaver Drain Garage 300mm x 545mm x 100mm x 87.5°
Code article : 191410
Description
The Timesaver Drain garage gully trap allows for a large catchment of surface water through circular access that provides a 50mm water seal that prevents the rise of odours into a 100mm DN pipe network. Up to 3 x Inlets for lateral connection can be provided at a, b or c.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 191410 | 100 | - | - | - | - | - | 58.4 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
The Timesaver Drain garage gully trap allows for a large catchment of surface water through circular access that provides a 50mm water seal that prevents the rise of odours into a 100mm DN pipe network. Up to 3 x Inlets for lateral connection can be provided at a, b or c.
Recommended use :
- Domestic use
- Fat wastewater
- Aggressive effluents
- Hot effluents
- Hydrocarbon wastewater
- Industrial wastewater
- Rainwater
- Runoff water
Major benefits :
Raising pieces to suit TD559. Can be fitted with a specific galvanised sediment pan to capture any silt or debris. Special cast iron gratings to suit with a M125 loading capacity
Technical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
Coating description
- Coating: Black Water Based Primer to an average thickness of 70microns.
- Material : Cast Iron
- Industry product standards : BS 437
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
