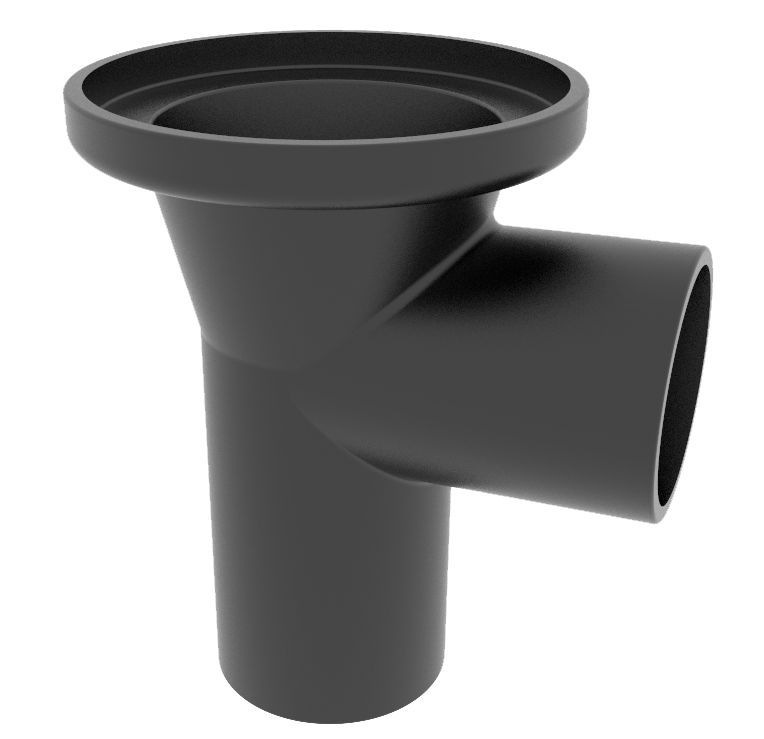

TD500 Gully Timesaver Drain Bellmouth Inlet 100mm

Code article : 191301

Description

The Timesaver Drain cast iron gully inlets allows access the pipe system for cleaning and rodding purposes. The body only can be fitted with a range of 200mm diameter gratings from the plain grating TD612 to a sealed grease seal cover and frame TD616.

Product variants

Article DN dn Angle Length Height Width Weight
191301 100 - 8.6

All dimensions are in mm and nominal weights are in kg

Technical infos & product description

Product description

The Timesaver Drain cast iron gully inlets allows access the pipe system for cleaning and rodding purposes. The body only can be fitted with a range of 200mm diameter gratings from the plain grating TD612 to a sealed grease seal cover and frame TD616.

Recommended use :

  • Domestic use
  • Fat Wastewater
  • Aggressive effluents
  • Hot effluents
  • Hydrocarbon Wastewater
  • Industrial Wastewater
  • Rainwater
  • Runoff water

Major benefits :

The gully can also accommodate raising pieces TD525 if the pipework is below the surface.

Technical infos

  • Hot water resistance: 24h at 95°C
  • Thermal cycle resistance: 1500 cycles between 15°C and 93°C

Coating description :

  • Coating: Black Water Based Primer to an average thickness of 70microns.
  • Material : Cast Iron
  • Industry product standards : BS437
  • Range Fire Classification : Euroclass A1
  • Acoustic Performance :
  • Percentage of Recycled Content : 97%
  • Recycling Information : Virtually 100% Recyclable
