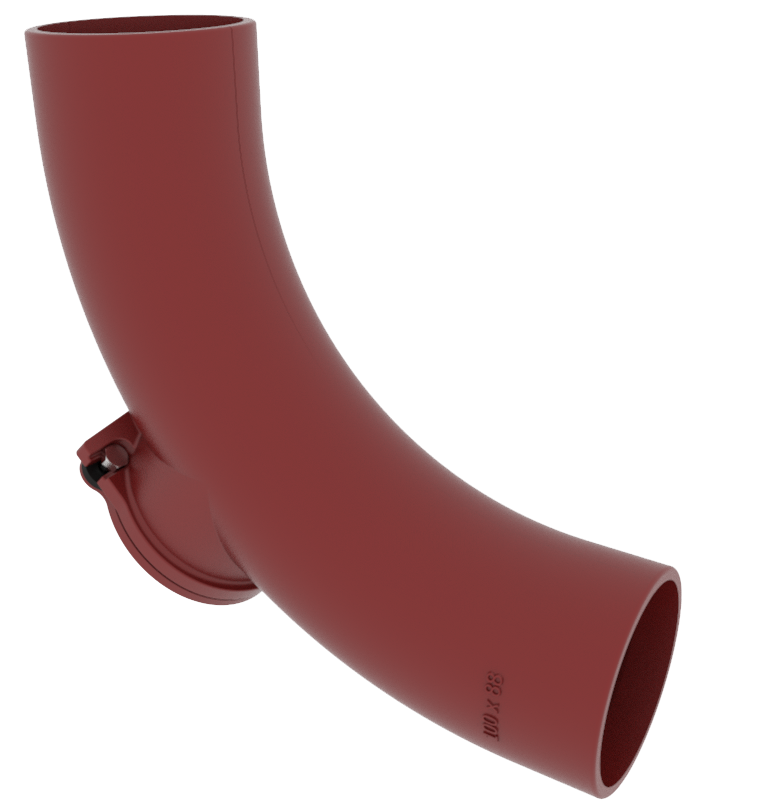

EF05L Bend Ensign Soil Long Radius with Rear Access 100mm x 88°
Code article : 156607
Description
The Ensign cast iron large radius bends allow a change of direction of the transported fluid, while keeping the quality and the reliability, thanks to the epoxy internal coating.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 156607 | 100 | - | 88 | 324 | 324 | 110 | 5.5 |
| 192357 | 150 | - | 88 | 354 | 354 | 160 | 11.4 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
The Ensign cast iron large radius bends allow a change of direction of the transported fluid, while keeping the quality and the reliability, thanks to the epoxy internal coating.
Recommended use :
- Domestic use
- Fat Wastewater
- Hot effluents
- Hydrocarbon Wastewater
- Rainwater
- Runoff water
- Industrial Wastewater
- High pressure
- Wastewater
Major benefits :
The bends are generally positioned at the base of the stack in accordance with BS EN 12056 part 2 design guidance. An opening is provided protected by a door to allow access to the system to clear any debris or blockage.
Technical infos
Hot water resistance: 24h at 95°C.Thermal cycle resistance: 1500 cycles between 15°C and 93°C.Chemical resistance for 2 ≤ pH ≤ 12.Salt spray resistance internal coating: more than 1500 h
Coating description
- External coating: Red powder Epoxy Resin average dry film thickness 70 microns
- Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
