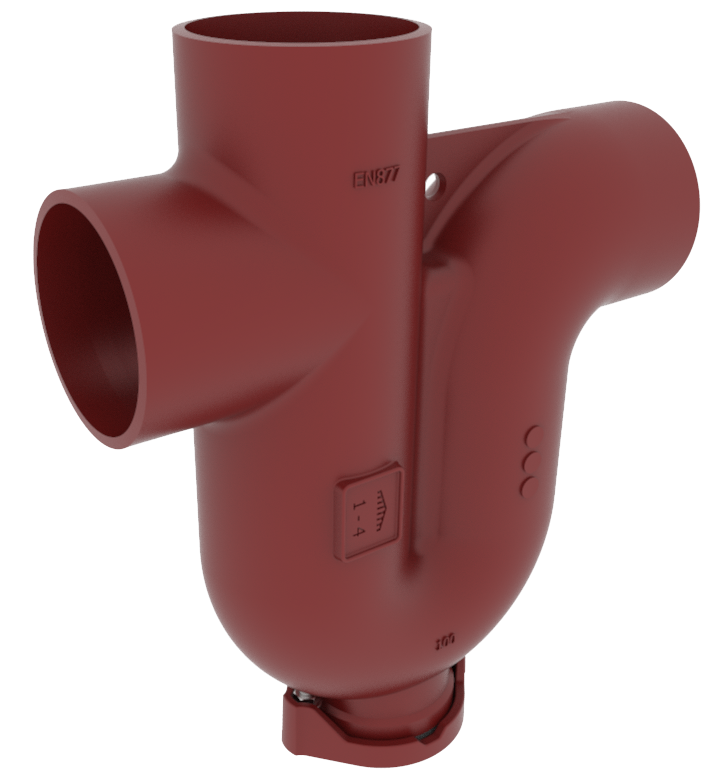

EF080 Trap Ensign Soil Branch 100mm
Code article : 191587
Description
The Ensign branch trap provides a water seal that prevents the rise of odours. The trap can be connected to either the horizontal or the vertical flow stream and directed in different directions by means of bends.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 155841 | 100 | - | - | 276 | 588 | 124 | 12.8 |
| 191587 | 100 | - | - | 325 | 381 | 110 | 7.9 |
| 155921 | 150 | - | - | 374 | 742 | 179 | 26.5 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
The Ensign branch trap provides a water seal that prevents the rise of odours. The trap can be connected to either the horizontal or the vertical flow stream and directed in different directions by means of bends.
Recommended use :
- Domestic use
- Fat wastewater
- Hot effluents
- Hydrocarbon wastewater
- Rainwater
- Runoff water
- Industrial wastewater
- Wastewater
- High pressure
- Aggressive effluents
- Corrosive atmosphere
Major benefits :
The unused inlet is to be closed off with a blank end of socket plug. The trap is fitted with a cleaning plug at the base.
Technical infos
- Hot water resistance: 24h at 95°C.
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
- Chemical resistance for 2 ≤ pH ≤ 12.
- Salt spray resistance internal coating: more than 1500 h
Coating description
- External coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
