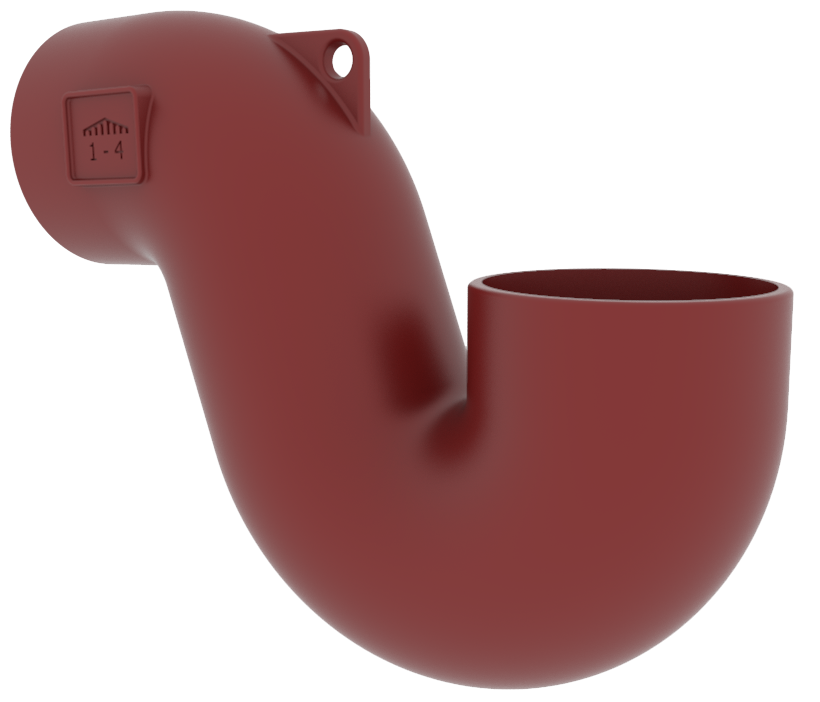

EF034 Trap Ensign Soil P Plain 100mm
Code article : 156666
Description
Ensign drain P traps that provides a water seal that prevents the rise of odours.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 156666 | 100 | - | - | 312 | 268 | 110 | 3.7 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Ensign drain P traps that provides a water seal that prevents the rise of odours.
Recommended use :
- Domestic use
- Fat wastewater
- Hot effluents
- Hydrocarbon wastewater
- Rainwater
- Runoff water
- Industrial wastewater
- Wastewater
- High pressure
- Aggressive effluents
- Corrosive atmosphere
Major benefits :
The Ensign drain standard P trap provides a 50mm water seal that prevents the rise of odours.
Technical infos
- Hot water resistance: 24h at 95°C.
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
- Chemical resistance for 2 ≤ pH ≤ 12.
- Salt spray resistance internal coating: more than 1500 h
Coating description
- External coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
