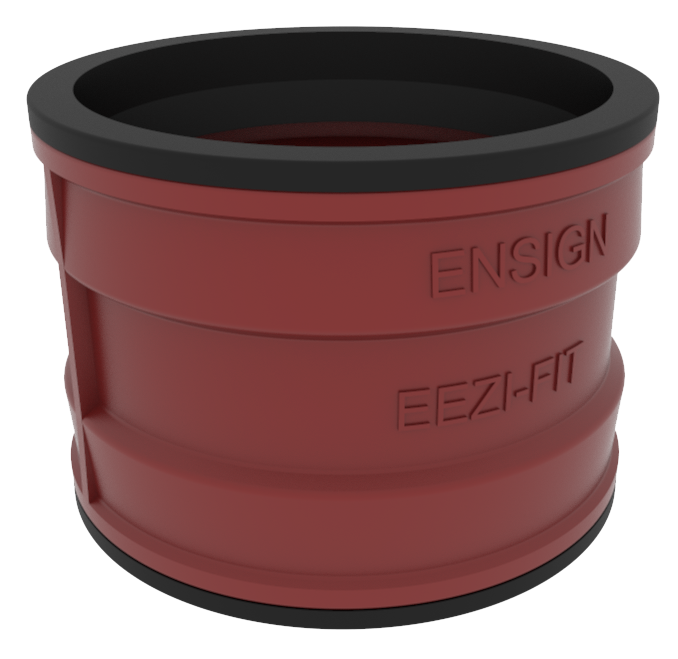

EZ001 Couplings EEZI-FIT Push-fit 100mm
Code article : 208191
Description
This Push-fit Coupling enables a quick and effective way to join two products (pipes or fittings) togther, especially in long vertical runs.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 208191 | 100 | - | - | - | - | - | 1.3 |
| 216312 | 150 | - | - | - | - | - | 2 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
This Push-fit Coupling enables a quick and effective way to join two products (pipes or fittings) togther, especially in long vertical runs.
Recommended use :
- Domestic use
- Fat wastewater
- Hot effluents
- Hydrocarbon wastewater
- Industrial wastewater
- Rainwater
- Runoff water
Major benefits :
The EEZI-FIT cast iron push-fit coupling consisting of two EPDM gaskets, connects spigot ended pipes and fittings to BS EN 877 for above ground gravity 0.5bar sanitary applications.
Coating description
- External Coating: Red-brown, anti-corrosive epoxy, average dry film thickness 70 μm.
- Internal Coating: Red-brown, anti-corrosive epoxy, average dry film thickness 150 μm.
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
