A585 Pipe RW Classical Plus Round Eared 65mm x 1830mm

Code article : 192448

Description

Prepainted in high performance semi gloss black paint. Classical cast iron circular spigoted pipes for the vertical discharge of rainwater from a building into the below ground drainage network.

Product variants

Article DN dn Angle Length Height Width Weight
192448 65 - 1830 10.3
192450 75 - 1830 12.5
192452 100 - 1830 16

All dimensions are in mm and nominal weights are in kg

Technical infos & product description

Product description

Prepainted in high performance semi gloss black paint. Classical cast iron circular spigoted pipes for the vertical discharge of rainwater from a building into the below ground drainage network.

Recommended use :

  • Rainwater
  • Runoff water

Major benefits :

Pipes are 1829mm or (6ft) in length in accordance with the standard BS460. The pipe sockets are available with fixing ears to allow the pipe to be attached to the building structure using pipe nails or fixing screws. Pipes with sockets without fixing ears are fixed using additional brackets in mild steel. Pipe spigots are not sealed into the sockets to allow the rainwater to escape in the case of a blockage.

Technical infos

  • Classical products coated in PPA571 have been salt spray and ultra-violet resistance tested for up to 1500 hours.

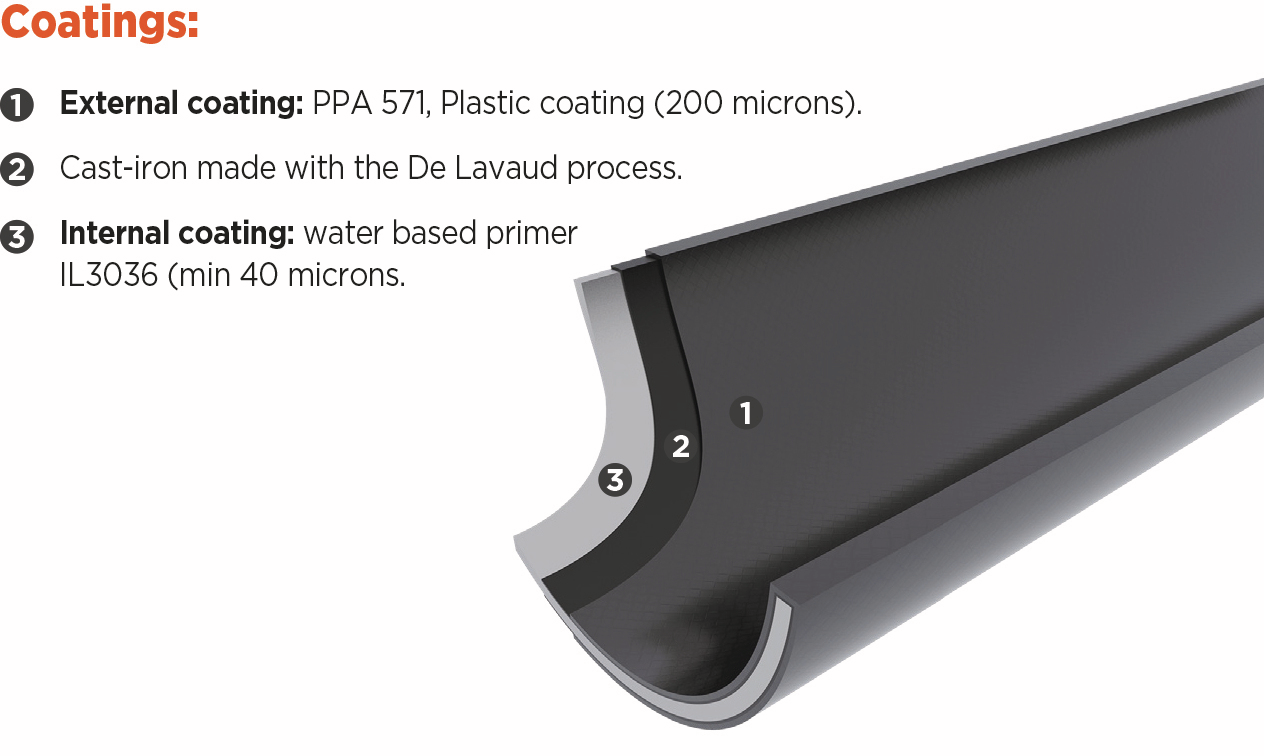

Coating description :

  • Coating: Black semi-gloss RAL 9005 700 as standard to an average thickness of 200 microns.
  • Material : Cast Iron
  • Industry product standards : BS460
  • Range Fire Classification :
  • Acoustic Performance :
  • Percentage of Recycled Content : 97%
  • Recycling Information : Virtually 100% Recyclable
