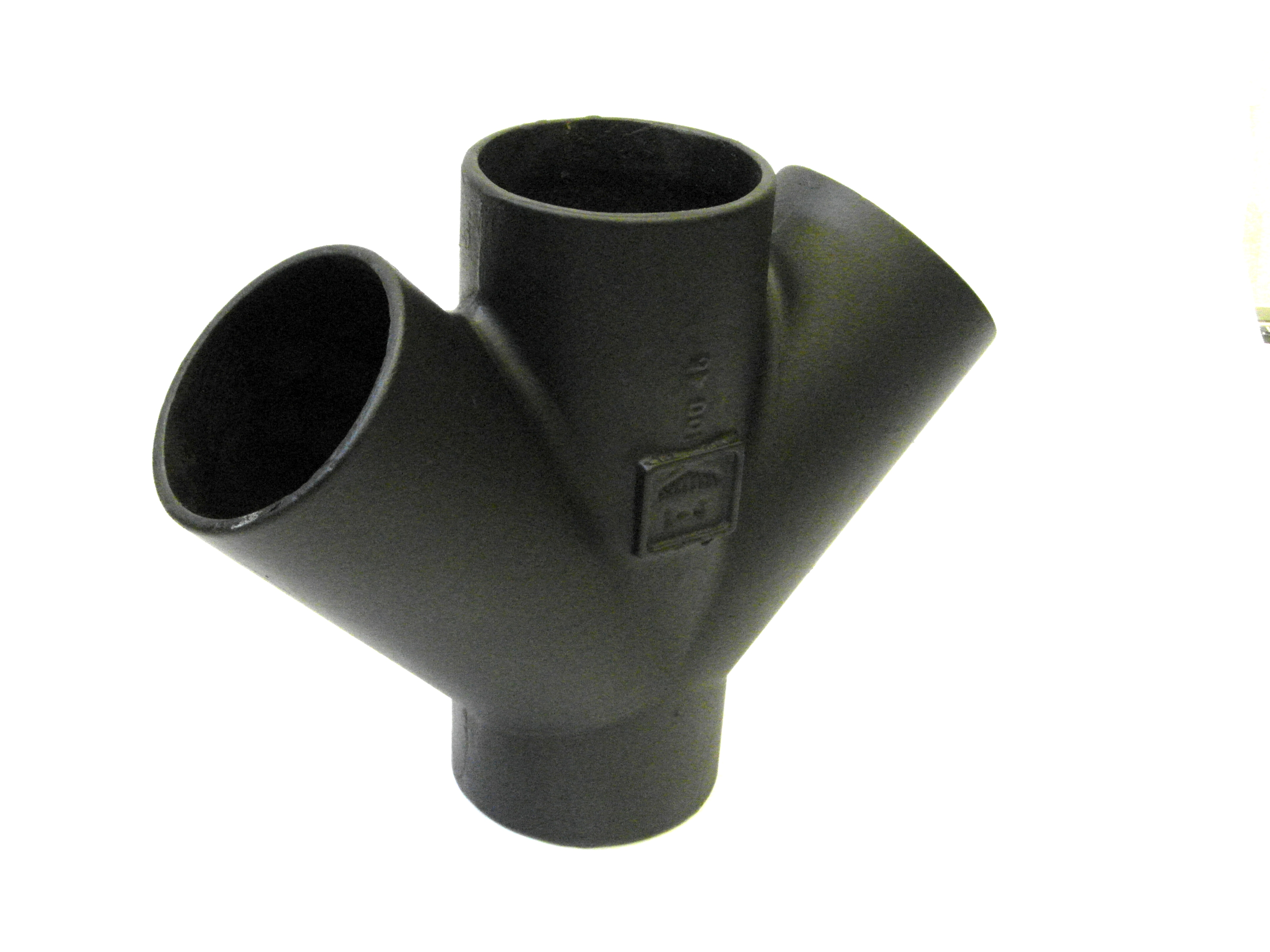

GT10 Branch Timesaver Soil Double 100mm x 100mm x 45°
Code article : 191682
Description
These Timesaver soil double branch enables the connection of pipes at a variety of sizes, combinations, angles which will suit your projects needs. These branches have the added feature of a access point and a swept radius.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 191682 | 100 | - | - | - | - | - | 4 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
These Timesaver soil double branch enables the connection of pipes at a variety of sizes, combinations, angles which will suit your projects needs. These branches have the added feature of a access point and a swept radius.
Recommended use :
- Domestic use
- Fat Wastewater
- Hot effluents
- Hydrocarbon Wastewater
- Industrial Wastewater
- Rainwater
- Runoff water
Major benefits :
Timesaver Soil cast iron double branch with swept radius entry to maximise the lateral discharge flow from back to back WC’s into the main soil vertical stack in accordance with BS EN 12056 part2.
Technical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
- Chemical resistance for 1 ≤ pH ≤ 13, up to 80°C
- Salt spray resistance internal coating : more than 1500h
- Salt spray resistance external coating : more than 1500h
Coating description
- Coating: Black water based primer to an average thickness of 70 microns.
- Industry product standards : BS 416-2
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
