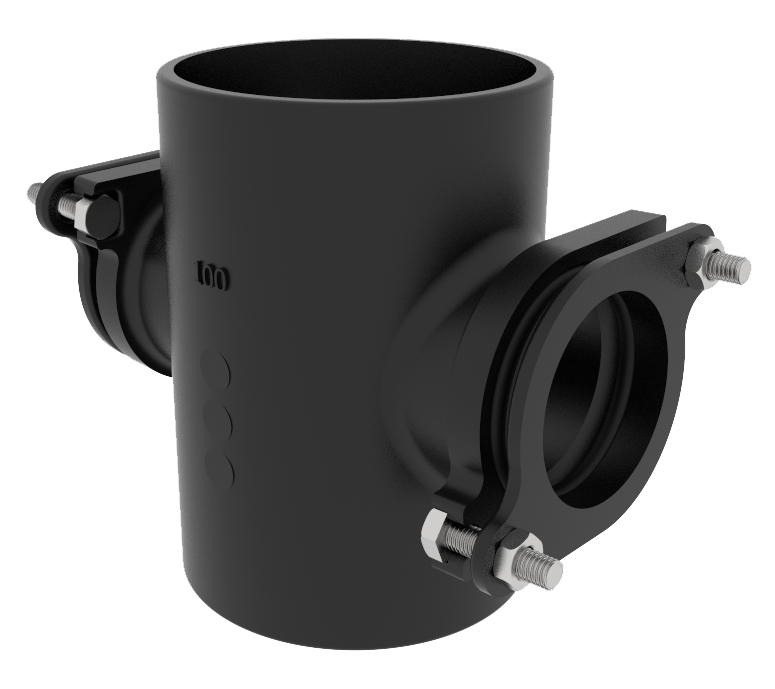

GT109 Boss Pipe Timesaver Soil Double Boss Compression 150mm x 150mm
Code article : 192360
Description
These Timesaver soil single boss pipes enable you to connect a 50mm waste pipe and come in different confirurations from single, double oppossed or 90 degree options.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 192240 | 100 | - | - | - | - | - | 2.5 |
| 192360 | 150 | - | - | - | - | - | 4.2 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
These Timesaver soil single boss pipes enable you to connect a 50mm waste pipe and come in different confirurations from single, double oppossed or 90 degree options.
Recommended use :
- Domestic use
- Fat wastewater
- Hot effluents
- Hydrocarbon wastewater
- Industrial wastewater
- Rainwater
- Runoff water
Major benefits :
Push fit connection inserting the waste pipe into a compression fit clamp flange
Technical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
- Chemical resistance for 1 ≤ pH ≤ 13, up to 80°C
- Salt spray resistance internal coating : more than 1500h
- Salt spray resistance external coating : more than 1500h
Coating description
- Coating: Black water based primer to an average thickness of 70 microns.
- Material : Cast Iron
- Industry product standards : BS 416-2
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
