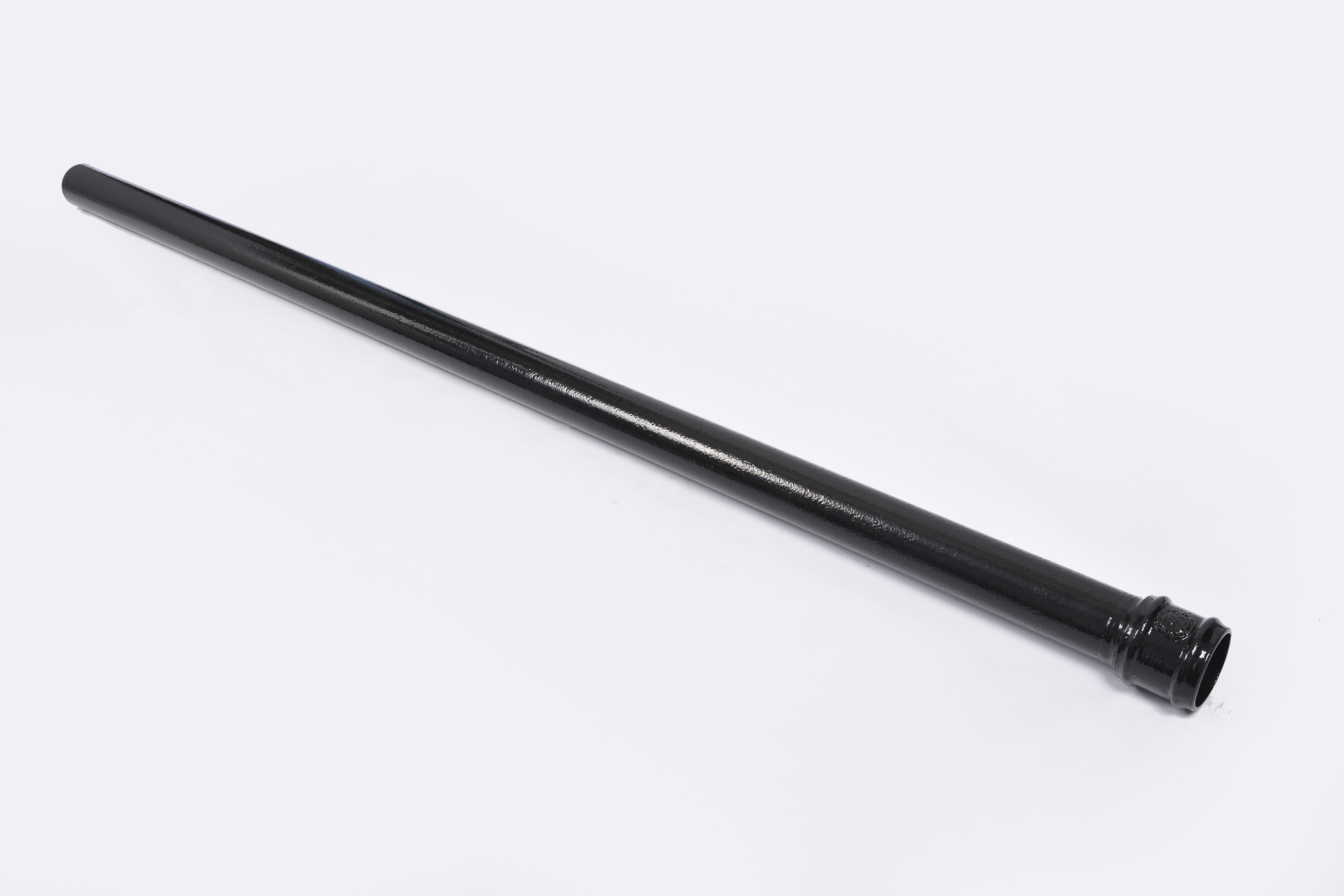

A585 Pipe RW Classical Barrel 75mm x 1750mm

Code article : 192217

Description

Prepainted in high performance semi gloss black paint. Classical cast iron circular spigoted pipes for the vertical discharge of rainwater from a building into the below ground drainage network.

Product variants

Article DN dn Angle Length Height Width Weight
192216 65 - 1750 74 74 9
192217 75 - 1750 83 83 11
192218 100 - 1750 110 110 14

All dimensions are in mm and nominal weights are in kg

Technical infos & product description

Product description

Prepainted in high performance semi gloss black paint. Classical cast iron circular spigoted pipes for the vertical discharge of rainwater from a building into the below ground drainage network.

Recommended use :

  • Rainwater
  • Runoff water

Major benefits :

Centrifually spun to ensure consistency throughout the pipe length. 1750mm in length. Tested to 1500 hours salt spray and ultra-violet resistant. Product wrapped for protection during delivery. Pipes are 1750mm in length often used for a cost effective solution to make offcuts or short length pieces. Used with cast iron loose pipe sockets A586 which are available with fixing ears to allow the pipe to be attached to the building structure using pipe nails or fixing screws or with loose pipe sockets without fixing ears which are fixed using additional brackets in mild steel. Pipe spigots are not sealed into the sockets to allow the rainwater to escape in the case of a blockage.

Coating description :

  • Coating: Black water based primer to an average thickness of 70 microns.
  • Material : Cast Iron
  • Industry product standards : BS460
  • Range Fire Classification :
  • Acoustic Performance :
  • Percentage of Recycled Content : 97%
  • Recycling Information : Virtually 100% Recyclable
