A590 Access Pipe RW Classical Round Eared 75mm
Code article : 192411
Description

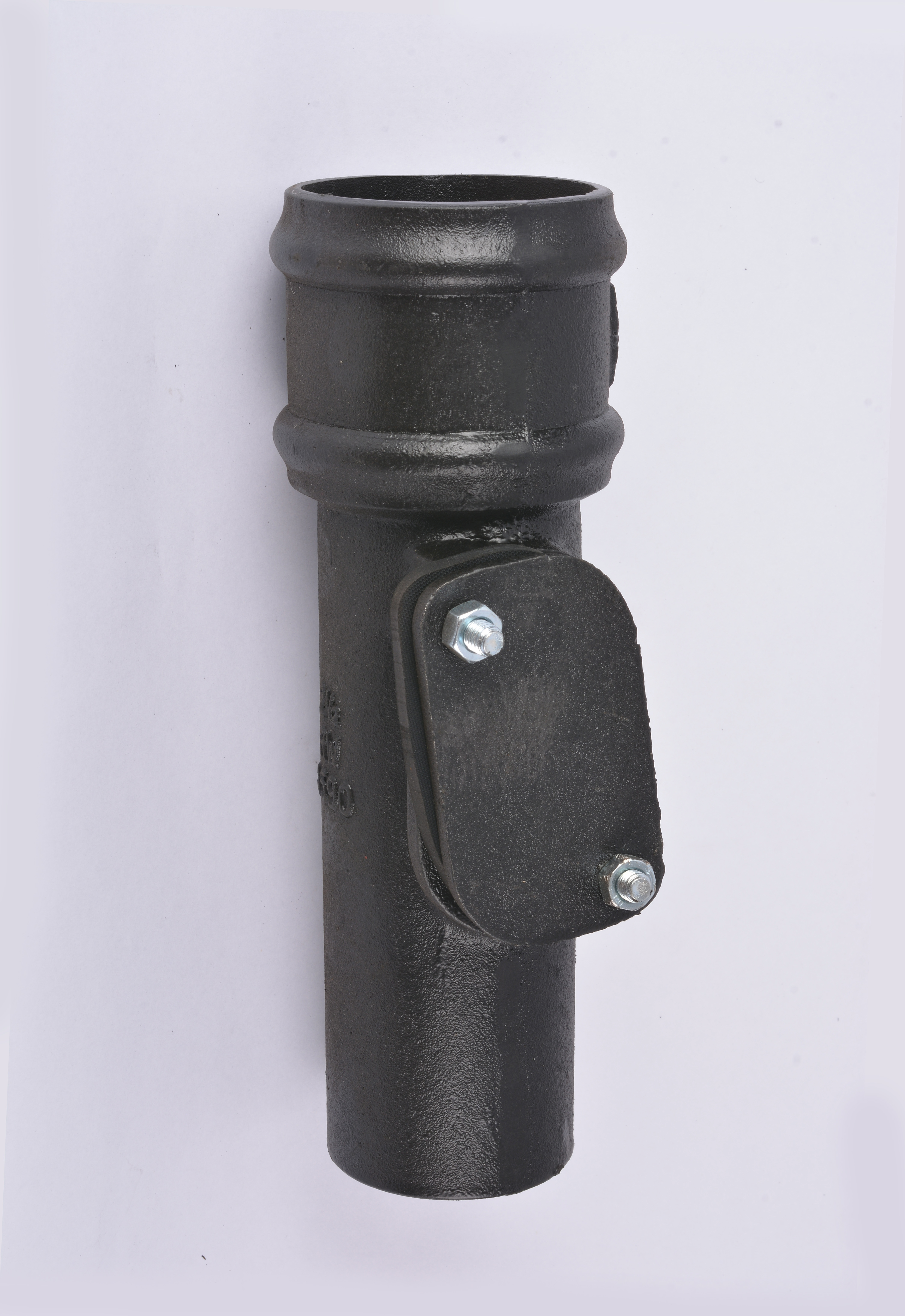

Primed and Plus. Classical cast iron circular rainwater access pipe fittings. An opening is provided protected by a door to allow access to the system to clear any debris or blockage.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 192410 | 65 | - | - | - | - | - | 2.9 |
| 192411 | 75 | - | - | - | - | - | 3.8 |
| 192223 | 100 | - | - | - | - | - | 5.5 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Primed and Plus. Classical cast iron circular rainwater access pipe fittings. An opening is provided protected by a door to allow access to the system to clear any debris or blockage.
Recommended use :
- Rainwater
- Runoff water
Major benefits :
Cast iron access pipes are available with fixing ears to allow the shoe to be attached to the building structure using pipe nails or fixing screws
Coating description
- Coating: Black water based primer to an average thickness of 70 microns.
- Material : Cast Iron
- Industry product standards : BS 460
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
