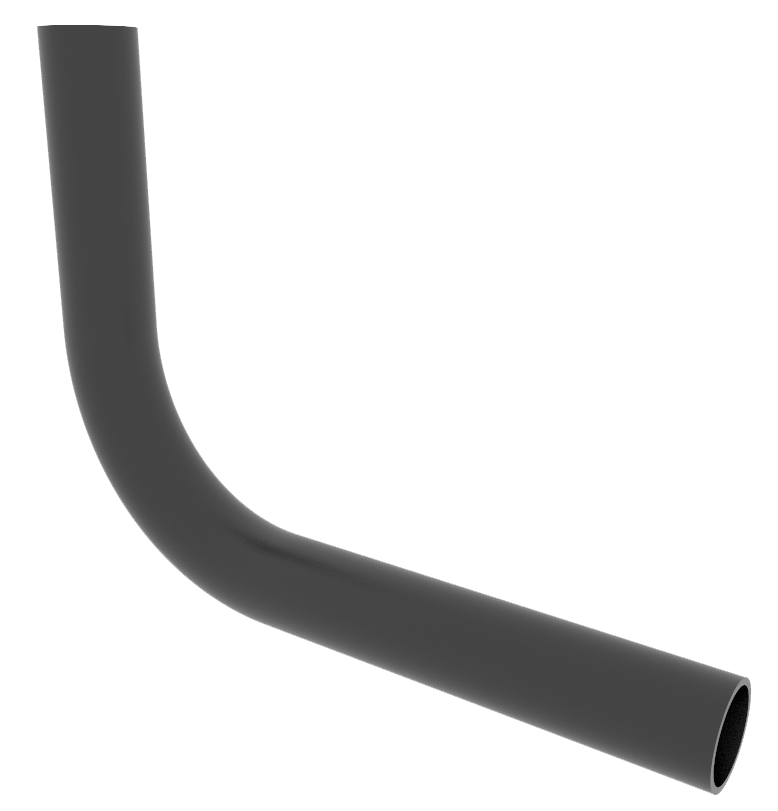

TD104 Bend Timesaver Drain Long Tail Large Radius 150mm x 850mm x 87.5°
Code article : 192699
Description
The Timesaver Drain cast iron large radius bend allows a change of direction of the transported fluid
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 197173 | 100 | - | - | - | - | - | 33 |
| 192699 | 150 | - | - | - | - | - | 54 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
The Timesaver Drain cast iron large radius bend allows a change of direction of the transported fluid
Recommended use :
- Domestic use
- Fat Wastewater
- Aggressive effluents
- Hot effluents
- Hydrocarbon Wastewater
- Industrial Wastewater
- Rainwater
- Runoff water
Major benefits :
The bend has an extended horizontal spigot of 850mm
Technical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
Coating description
- Coating: Black Water Based Primer to an average thickness of 70microns.
- Material : Cast Iron
- Industry product standards : BS 437
- Range Fire Classification :
Euroclass A2-s1,d0
- Percentage of Recycled Content : 99%
- Recycling Information : Fully recyclable
