TD616 Grate Timesaver Drain Greased Sealed Cover and Frame 200mm
Code article : 191389
Description

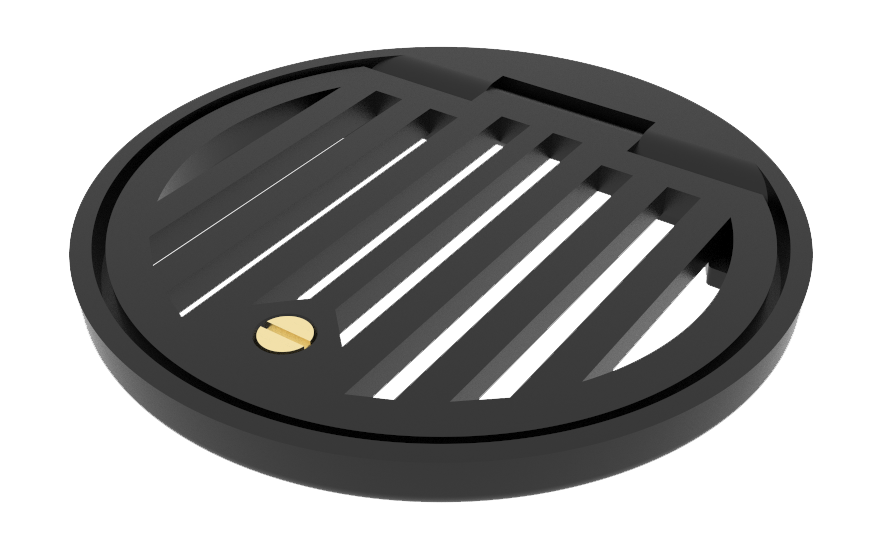

Timesaver Drain cast iron gratings 200mm in diameter to suit TD500/105/106 gully inlets, clearing arm bend TD425 and TD525 raising pieces. All gratings have an L15 loading capability and TD613-TD616 require frames to be sealed with a caulking compound.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 191389 | 200 | - | - | - | - | - | 2.7 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Timesaver Drain cast iron gratings 200mm in diameter to suit TD500/105/106 gully inlets, clearing arm bend TD425 and TD525 raising pieces. All gratings have an L15 loading capability and TD613-TD616 require frames to be sealed with a caulking compound.
Recommended use :
- Domestic use
- Fat wastewater
- Aggressive effluents
- Hot effluents
- Hydrocarbon wastewater
- Industrial wastewater
- Rainwater
- Runoff water
Major benefits :
TD 616 - grease seal cover and frame.
Technical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
Coating description
- Coating: Black Water Based Primer to an average thickness of 70microns.
- Material : Cast Iron
- Industry product standards : BS 437
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
