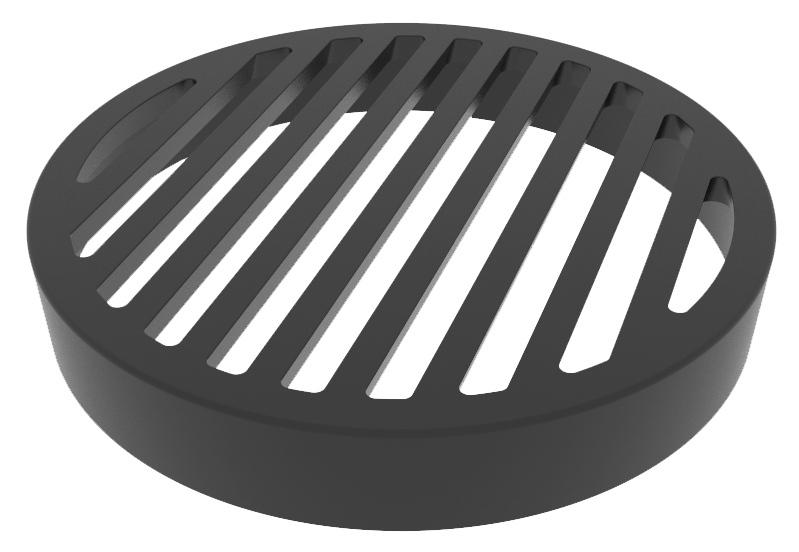

TD651 Grate Timesaver Drain Heavy 265mm
Code article : 191391
Description
Heavy duty cast iron grating to allow access of surface water (M125 loading)
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 191391 | 265 | - | - | - | - | - | 8 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Heavy duty cast iron grating to allow access of surface water (M125 loading)
Recommended use :
- Domestic use
- Fat wastewater
- Aggressive effluents
- Hot effluents
- Hydrocarbon wastewater
- Industrial wastewater
- Rainwater
- Runoff water
Major benefits :
Heavy duty cast iron grating to allow access of surface water (M125 loading)
Technical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
Coating description
- Coating: Black Water Based Primer to an average thickness of 70microns.
- Material : Cast Iron
- Industry product standards : BS 437
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
