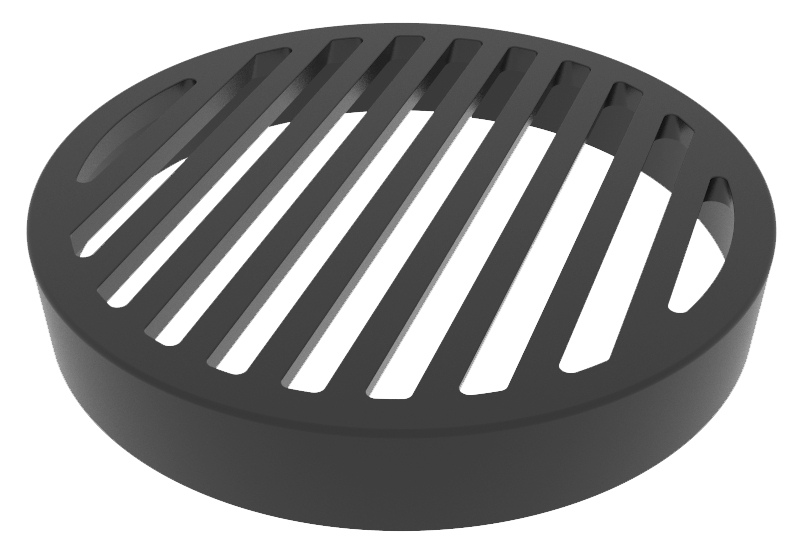

TD653 Grate Timesaver Drain Hinged and Locking 265mm
Code article : 191360
Description
Timesaver Drain Hinged and Locking Grate 265mm. Hinged and locking grating and frame and to allow access of surface water (L15)
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 191360 | 265 | - | - | - | - | - | 5.3 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Timesaver Drain Hinged and Locking Grate 265mm. Hinged and locking grating and frame and to allow access of surface water (L15)
Recommended use :
- Domestic use
- Fat Wastewater
- Aggressive effluents
- Hot effluents
- Hydrocarbon Wastewater
- Industrial Wastewater
- Rainwater
- Runoff water
Major benefits :
TD653/ TD661/ TD662 frames require caulking into raising pieces, gully inlets and traps.
Technical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
Coating description
- Coating: Black Water Based Primer to an average thickness of 70microns.
- Material : Cast Iron
- Industry product standards : BS 437
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
