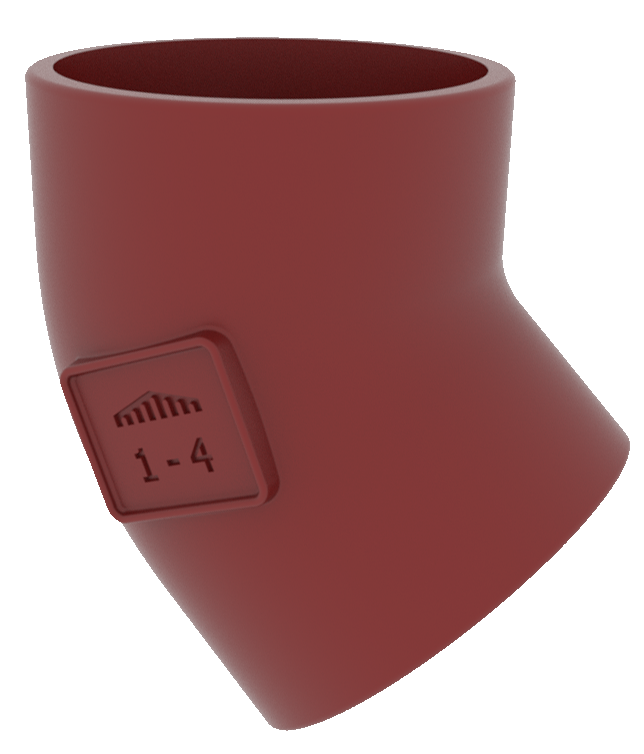

EF002 Bend Ensign Soil Short Radius 100mm x 45º
Code article : 191445
Description
The Ensign Soil Short Radius Bends in cast iron are available in a range of sizes and angles to suit you project needs. Used individually or in combinations you will be able to meet most of the bend requirements.
Product variants
Article | DN | dn | Angle | Length | Height | Width | Weight |
---|---|---|---|---|---|---|---|
191435 | 50 | 45 | 84 | 106 | 58 | 0.6 | |
191440 | 70 | 45 | 108 | 129 | 78 | 0.9 | |
191445 | 100 | 45 | 142 | 158 | 110 | 1.6 | |
191452 | 125 | 45 | 171 | 184 | 135 | 2.1 | |
191457 | 150 | 45 | 199 | 210 | 160 | 3.4 | |
191461 | 200 | 45 | 256 | 262 | 210 | 5.3 | |
191464 | 250 | 45 | 324 | 319 | 274 | 10 | |
191432 | 300 | 45 | 387 | 380 | 326 | 18.3 | |
192335 | 400 | 45 | 540 | 573 | 429 | 34.4 | |
192376 | 500 | 45 | 678 | 730 | 532 | 52 | |
192377 | 600 | 45 | 788 | 821 | 635 | 111 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
The Ensign Soil Short Radius Bends in cast iron are available in a range of sizes and angles to suit you project needs. Used individually or in combinations you will be able to meet most of the bend requirements.
Recommended use :
- Domestic use
- Fat Wastewater
- Hot effluents
- Hydrocarbon Wastewater
- Rainwater
- Runoff water
- Industrial Wastewater
Major benefits :
The Ensign cast iron soil bends allow a change of direction of the transported fluid, while keeping the quality and the reliability, thanks to the epoxy internal coating.Technical infos
- Hot water resistance: 24h at 95°C.
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
- Chemical resistance for 2 ≤ pH ≤ 12.
- Salt spray resistance internal coating: more than 1500 h
Coating description :
- External coating: Red powder Epoxy Resin average dry film thickness 70 microns
- Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns
- Material : Cast Iron
- Industry product standards : BS EN877
- Range Fire Classification : Euroclass A1
- Acoustic Performance : Cast Iron performance Best in class Lsc ≤ 10 dB(A) & LaA = 47 dB(A) according to EN 14366 with 2L/s
- Percentage of Recycled Content : 97%
- Recycling Information : Virtually 100% Recyclable
