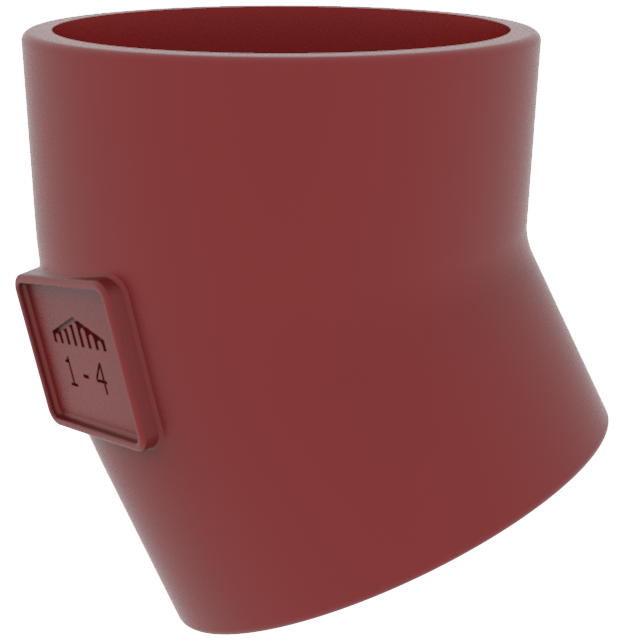

EF002 Bend Ensign Soil Short Radius 100mm x 30º
Code article : 191444
Description
The Ensign Soil Short Radius Bends in cast iron are available in a range of sizes and angles to suit you project needs. Used individually or in combinations you will be able to meet most of the bend requirements.
Product variants
Article | DN | dn | Angle | Length | Height | Width | Weight |
---|---|---|---|---|---|---|---|
191434 | 50 | 30 | 76 | 97 | 58 | 0.5 | |
191439 | 75 | 30 | 0.8 | ||||
191444 | 100 | 30 | 132 | 136 | 110 | 1.3 | |
191456 | 150 | 30 | 189 | 188 | 160 | 3 | |
155933 | 200 | 30 | 243 | 229 | 210 | 5.4 | |
155948 | 250 | 30 | 309 | 270 | 274 | 9.7 | |
155960 | 300 | 30 | 367 | 322 | 326 | 15.5 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
The Ensign Soil Short Radius Bends in cast iron are available in a range of sizes and angles to suit you project needs. Used individually or in combinations you will be able to meet most of the bend requirements.
Recommended use :
- Domestic use
- Fat Wastewater
- Hot effluents
- Hydrocarbon Wastewater
- Rainwater
- Runoff water
- Industrial Wastewater
Major benefits :
The Ensign cast iron soil bends allow a change of direction of the transported fluid, while keeping the quality and the reliability, thanks to the epoxy internal coating.Technical infos
- Hot water resistance: 24h at 95°C.
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
- Chemical resistance for 2 ≤ pH ≤ 12.
- Salt spray resistance internal coating: more than 1500 h
Coating description :
- External coating: Red powder Epoxy Resin average dry film thickness 70 microns
- Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns
- Material : Cast Iron
- Industry product standards : BS EN877
- Range Fire Classification : Euroclass A1
- Acoustic Performance : Cast Iron performance Best in class Lsc ≤ 10 dB(A) & LaA = 47 dB(A) according to EN 14366 with 2L/s
- Percentage of Recycled Content : 97%
- Recycling Information : Virtually 100% Recyclable
