EF036 Branch Ensign Soil Long Tail Corner 100mm x 100mm x 88°
Code article : 191559
Description

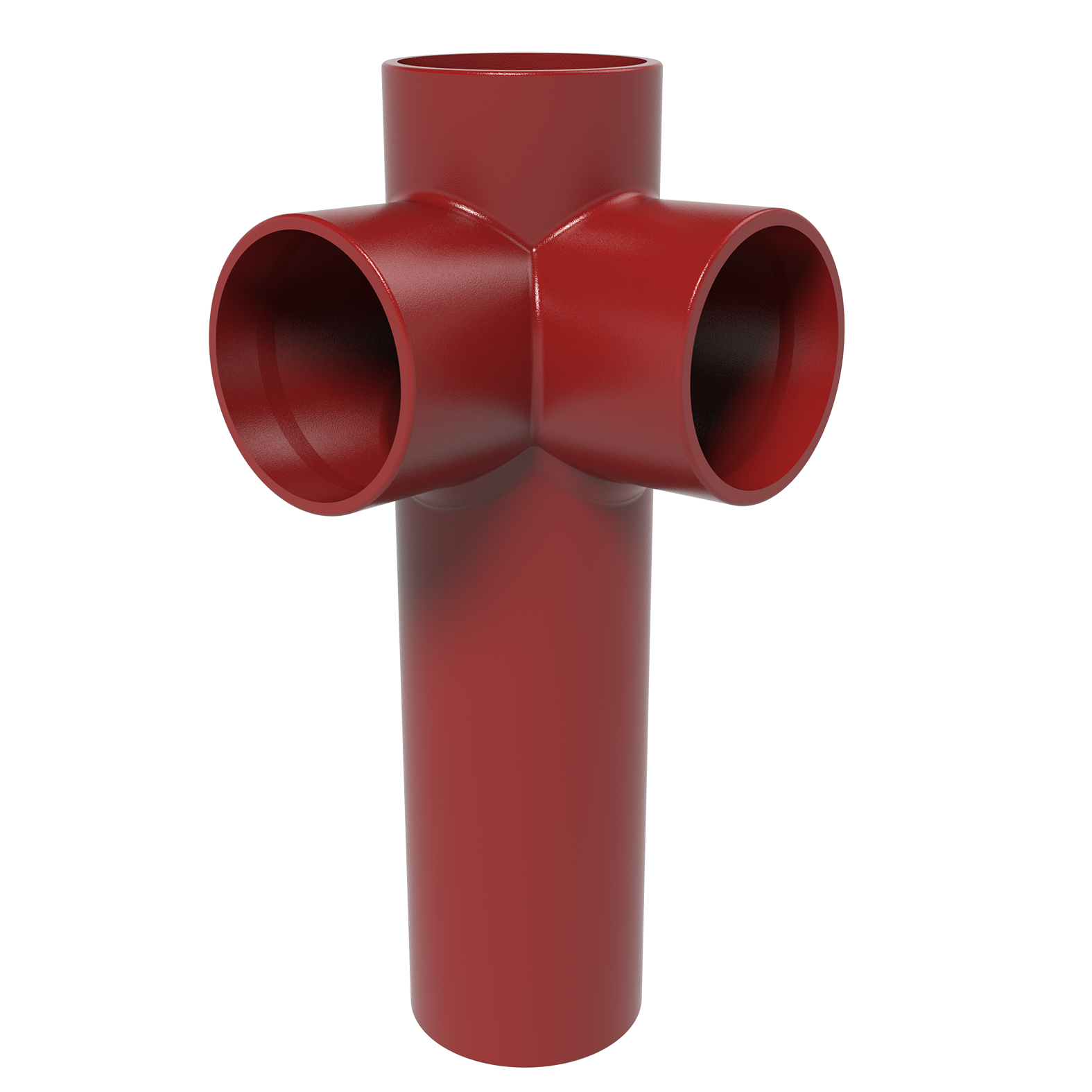

Ensign cast iron soil range corner branches allow the double lateral connection to the main vertical soil stack with the addition of a long tail to enable this fitting to go through the slab.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 191559 | 100 | 100 | 88 | 177 | 430 | 177 | 5.3 |
| 155919 | 150 | 100 | 88 | 227 | 245 | 227 | 5.3 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Ensign cast iron soil range corner branches allow the double lateral connection to the main vertical soil stack with the addition of a long tail to enable this fitting to go through the slab.
Recommended use :
- Domestic use
- Fat Wastewater
- Hot effluents
- Hydrocarbon Wastewater
- Rainwater
- Runoff water
- Industrial Wastewater
- Wastewater
- High pressure
Major benefits :
The branch has an extended spigot to allow full penetration of the floor slab before the next connection.
Technical infos
- Hot water resistance: 24h at 95°C.
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
- Chemical resistance for 2 ≤ pH ≤ 12.
- Salt spray resistance internal coating: more than 1500 h
Coating description
- External coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
