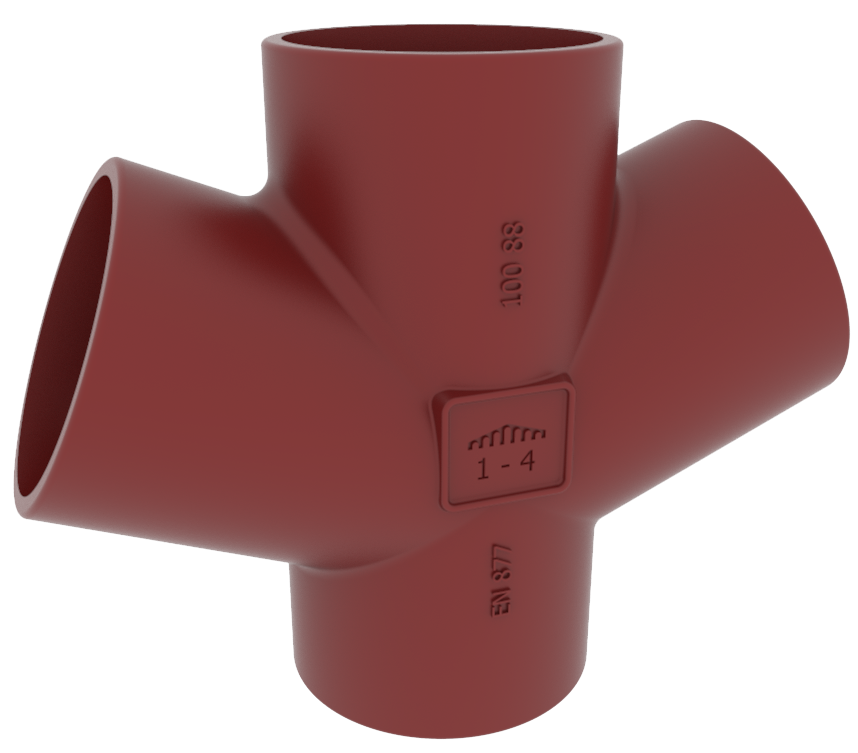

EF010 Branch Ensign Soil Double 100mm x 100mm x 69°
Code article : 191510
Description
Ensign cast iron soil range double branch allows double lateral discharge into the main soil or rainwater stack.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 191510 | 100 | 100 | 68 | 281 | 220 | 110 | 3.4 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Ensign cast iron soil range double branch allows double lateral discharge into the main soil or rainwater stack.
Recommended use :
- Domestic use
- Fat Wastewater
- Hot effluents
- Hydrocarbon Wastewater
- Rainwater
- Runoff water
- Industrial Wastewater
- Wastewater
- High pressure
Major benefits :
Ensign cast iron soil range double branch allows double lateral discharge into the main soil or rainwater stack
Technical infos
- Hot water resistance: 24h at 95°C.
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
- Chemical resistance for 2 ≤ pH ≤ 12.
- Salt spray resistance internal coating: more than 1500 h
Coating description
- External coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
