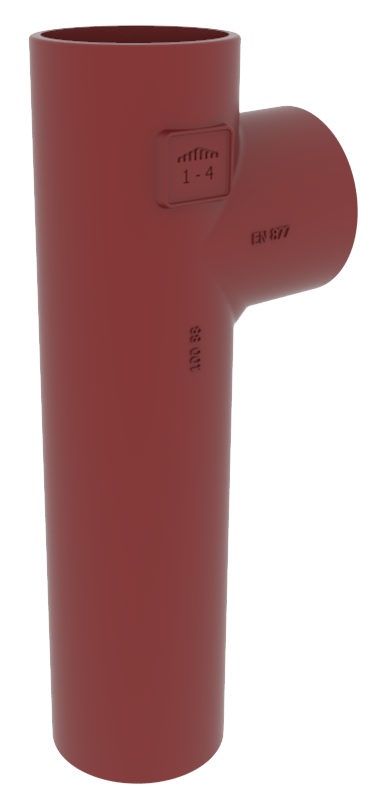

EF056 Branch Ensign Soil Long Tail Tee 100mm x 100mm x 88°
Code article : 191568
Description
The Ensign Soil Long Tail Bend enables you to have a branch that then goes through the slab and therefore reduces the number of parts required.
Technical infos & product description
Product description
The Ensign Soil Long Tail Bend enables you to have a branch that then goes through the slab and therefore reduces the number of parts required.
Recommended use :
- Domestic use
- Fat wastewater
- Hot effluents
- Hydrocarbon wastewater
- Rainwater
- Runoff water
- Industrial wastewater
- Wastewater
- High pressure
Major benefits :
The branch has an extended spigot to allow full penetration of the floor slab before the next connection
Technical infos
- Hot water resistance: 24h at 95°C.
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
- Chemical resistance for 2 ≤ pH ≤ 12.
- Salt spray resistance internal coating: more than 1500 h
Coating description
- External coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
