EF015 Access Pipe Ensign Soil Rectangular Door 125mm
Code article : 191521
Description

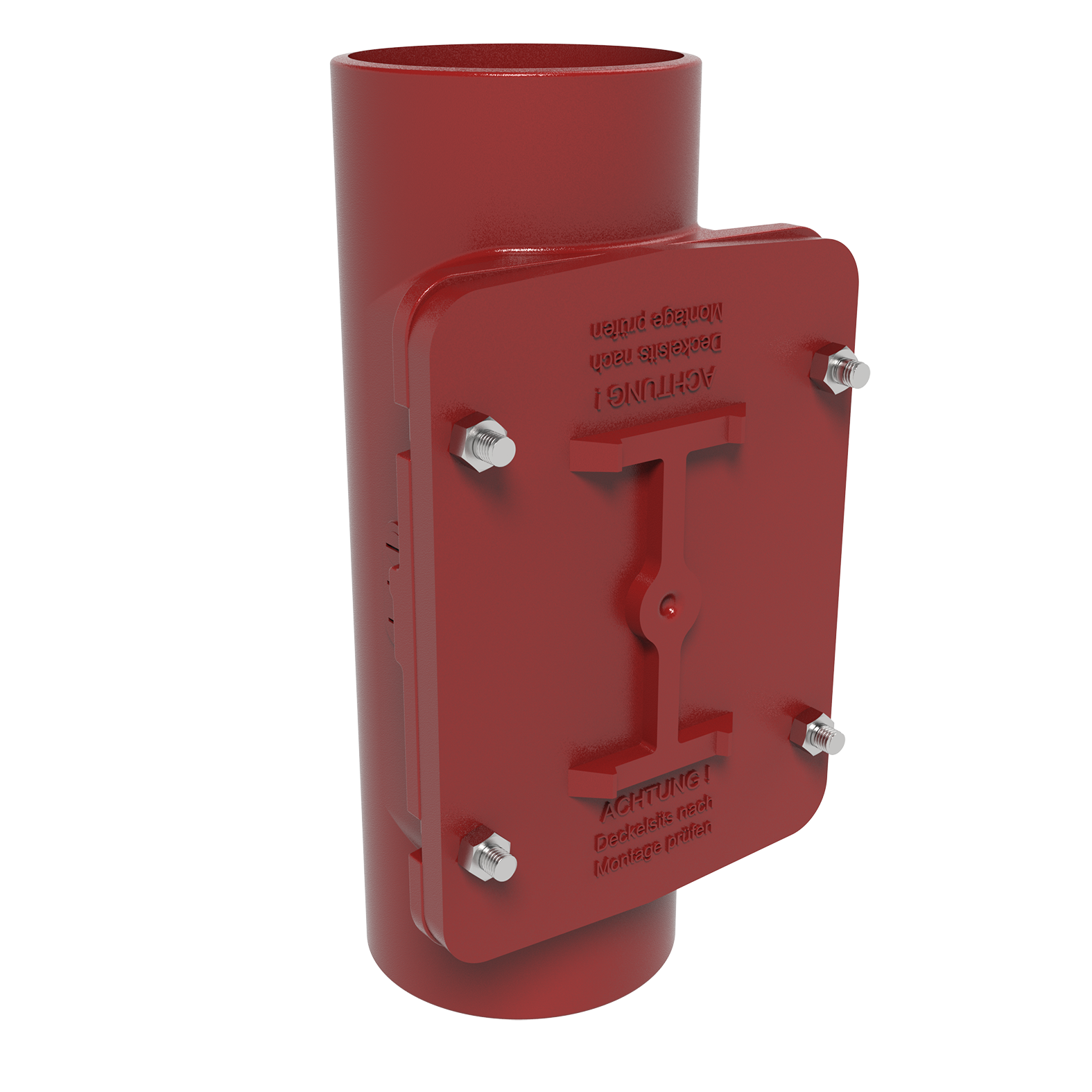

The Ensign access pipe allows you to enter the network. The access pipe is made up of a cast iron body and rectangular cover as well as an EPDM elastomer seal.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 191840 | 100 | - | - | 160 | 320 | 135 | 6.7 |
| 191521 | 125 | - | - | 190 | 355 | 151 | 9 |
| 191841 | 150 | - | - | 210 | 395 | 185 | 12.2 |
| 191522 | 200 | - | - | 230 | 475 | 245 | 20.2 |
| 191523 | 250 | - | - | 330 | 540 | 297 | 38.5 |
| 191520 | 300 | - | - | 380 | 610 | 353 | 50 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
The Ensign access pipe allows you to enter the network. The access pipe is made up of a cast iron body and rectangular cover as well as an EPDM elastomer seal.
Recommended use :
- Domestic use
- Fat wastewater
- Hot effluents
- Hydrocarbon wastewater
- Rainwater
- Runoff water
- Industrial wastewater
- High pressure
- Wastewater
Major benefits :
The access pipe with rectangular door has a wider opening and therefore is often used at the base of the stack in basements / car parks to maximise opportunity for cleaning. Easy opening and closing of the cast iron cover using T spanner EF098 or 13mm deep socket.
Technical infos
- Hot water resistance: 24h at 95°C.
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
- Chemical resistance for 2 ≤ pH ≤ 12.
- Salt spray resistance internal coating: more than 1500 h
Coating description
- External coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
