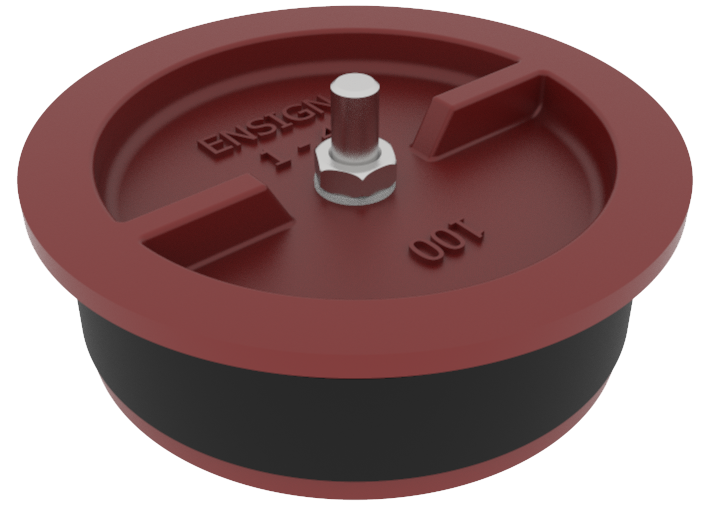

EF074 Expansion Plug Ensign Soil 100mm
Code article : 191583
Description
The Ensign expansion plugs are used to temporarily or definitively seal the pipes and fittings located inside the aperture, used on gravity drainage networks. The resistance to accidental pressure of the expanding plug is 0.2 bar without additional device.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 156374 | 50 | - | - | 62 | 47 | 62 | 0.22 |
| 191582 | 70 | - | - | 85 | 71 | 85 | 0.6 |
| 191583 | 100 | - | - | 118 | 77 | 118 | 1.2 |
| 191584 | 150 | - | - | 168 | 73 | 168 | 2.4 |
| 156961 | 200 | - | - | 220 | 87 | 220 | 5 |
| 157060 | 250 | - | - | 284 | 100 | 284 | 6.2 |
| 157125 | 300 | - | - | 336 | 100 | 336 | 9 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
The Ensign expansion plugs are used to temporarily or definitively seal the pipes and fittings located inside the aperture, used on gravity drainage networks. The resistance to accidental pressure of the expanding plug is 0.2 bar without additional device.
Recommended use :
- Domestic use
- Fat wastewater
- Hot effluents
- Hydrocarbon wastewater
- Rainwater
- Runoff water
- Industrial wastewater
- High pressure
- Wastewater
Major benefits :
If necessary, the locking of this plug is carried out by means of the specific grip collar which can accommodate thrust pressures up to 10 bars depending on plug type.
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
