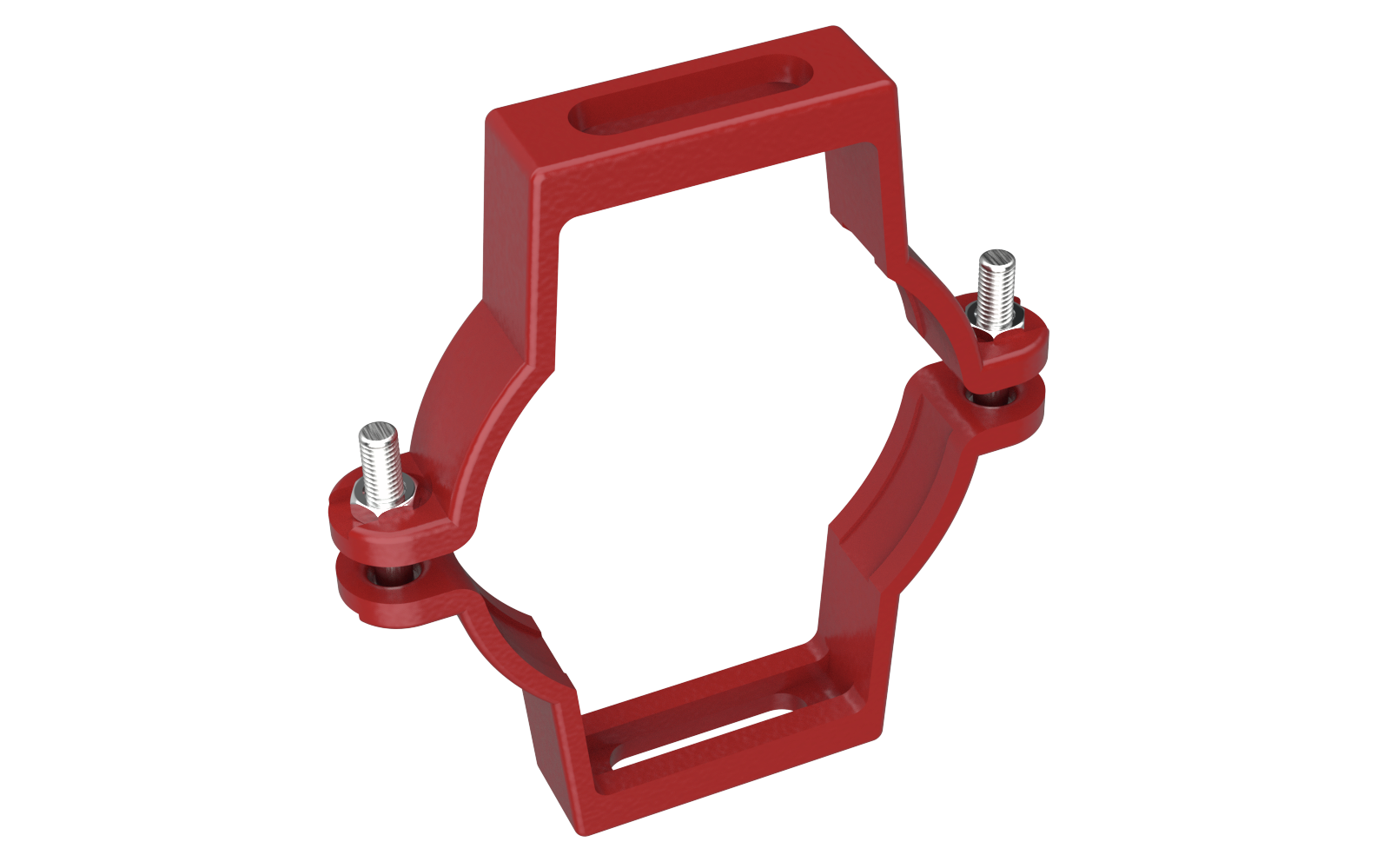

EF049 Bracket Ensign Soil Ductile Iron Double 100mm
Code article : 177744
Description
Ensign soil two-part red epoxy coated ductile iron brackets are for restraining cast iron pipe and fitting components to structural elements eg, walls and floors in two opposing positions.
Product variants
Article | DN | dn | Angle | Length | Height | Width | Weight |
---|---|---|---|---|---|---|---|
156408 | 50 | - | 0.3 | ||||
156505 | 70 | - | 0.5 | ||||
177744 | 100 | - | 0.8 | ||||
156646 | 100 | - | 0.6 | ||||
192333 | 100 | - | 0.5 | ||||
192363 | 100 | - | 0.5 | ||||
156898 | 150 | - | 0.8 | ||||
177745 | 200 | - | 1.6 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Ensign soil two-part red epoxy coated ductile iron brackets are for restraining cast iron pipe and fitting components to structural elements eg, walls and floors in two opposing positions.
Recommended use :
- Domestic use
- Fat Wastewater
- Hot effluents
- Hydrocarbon Wastewater
- Rainwater
- Runoff water
- Industrial Wastewater
Major benefits :
The bracket incorporates an elongated slot at both fixing points to ease fixing and allow flexible adjustment.Technical infos
- Hot water resistance: 24h at 95°C.
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
- Chemical resistance for 2 ≤ pH ≤ 12.
- Salt spray resistance internal coating: more than 1500 h
Coating description :
- External coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Material : Ductile Iron
- Industry product standards : BS EN877
- Range Fire Classification : Euroclass A1
- Acoustic Performance : Cast Iron performance Best in class Lsc ≤ 10 dB(A) & LaA = 47 dB(A) according to EN 14366 with 2L/s
- Percentage of Recycled Content : 97%
- Recycling Information : Virtually 100% Recyclable
