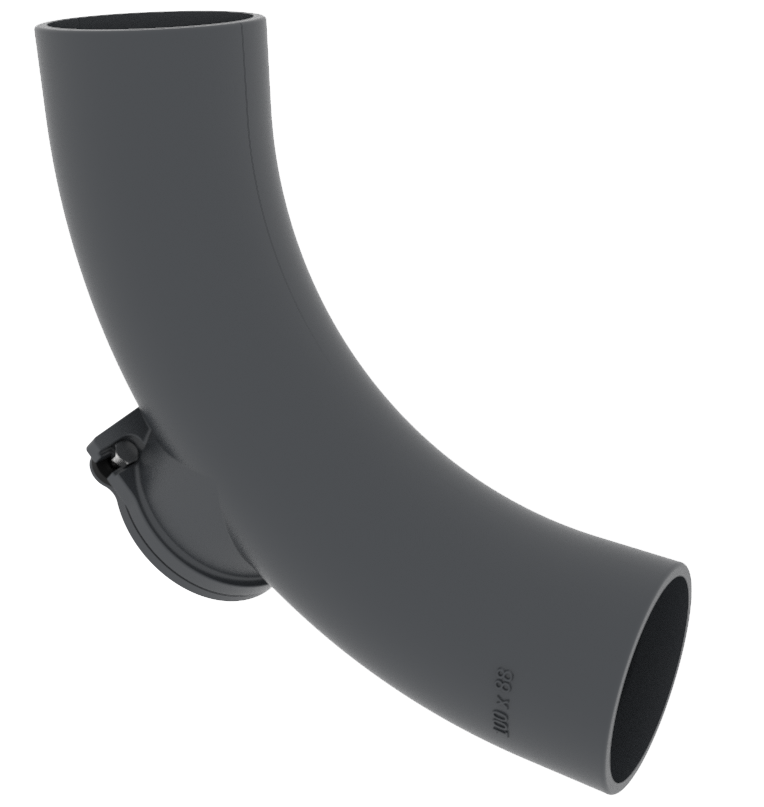

ED05L Bend Ensign Drain Long Radius with Rear Access 100mm x 88°
Code article : 191777
Description
The Ensign drain cast iron larger radius bends allow a change of direction of the transported fluid, while keeping the quality and the reliability, thanks to the epoxy internal coating.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 191777 | 100 | - | 88 | 324 | 324 | 110 | 5.5 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
The Ensign drain cast iron larger radius bends allow a change of direction of the transported fluid, while keeping the quality and the reliability, thanks to the epoxy internal coating.
Recommended use :
- Aggressive effluents
- Domestic use
- Fat Wastewater
- Hot effluents
- Industrial Wastewater
- Rainwater
- Runoff water
- High pressure
- Wastewater
Major benefits :
An opening is provided protected by a door to allow access to the system to clear any debris or blockage.
Technical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
- Chemical resistance for 1 ≤ pH ≤ 13, up to 80°C
- Salt spray resistance internal coating : more than 1500h
- Salt spray resistance external coating : more than 1500h
Coating description
- External coating: Powder Epoxy Resin average dry film thickness 150 microns
- Internal coating: Powder Epoxy Resin average dry film thickness 150 microns
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A2-s1,d0
- Percentage of Recycled Content : 97%
- Recycling Information : Virtually 100% Recyclable
