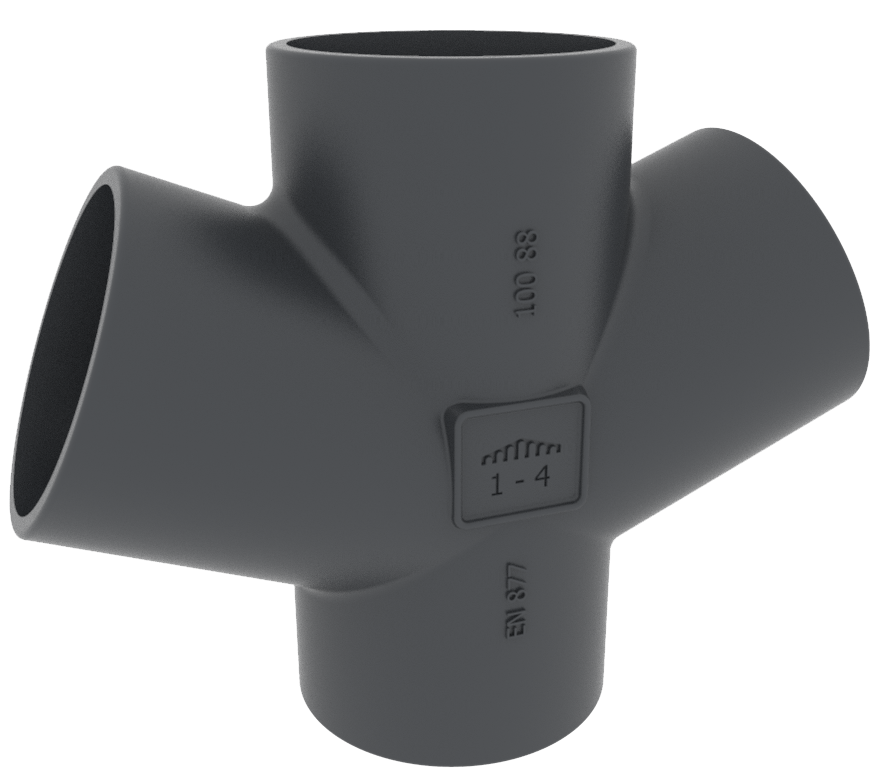

ED010 Branch Ensign Drain Double 100mm x 100mm x 69°
Code article : 191796
Description
Double Branch products come in a range of sizes and angles to enable you to connect multiple systems together either to manage the flow of waste fluids or air. There are a wide range of sizes in equal or odd sized branches to meet the flow needs of your projects. We also have a range of corner branches.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 191796 | 100 | 100 | 68 | 281 | 220 | 110 | 3.4 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Double Branch products come in a range of sizes and angles to enable you to connect multiple systems together either to manage the flow of waste fluids or air. There are a wide range of sizes in equal or odd sized branches to meet the flow needs of your projects. We also have a range of corner branches.
Recommended use :
- Aggressive effluents
- Domestic use
- Fat Wastewater
- Hot effluents
- Industrial Wastewater
- Rainwater
- Runoff water
- Wastewater
- High pressure
Major benefits :
Ensign drain cast iron double branches allows double lateral discharge flow.
Technical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
- Chemical resistance for 1 ≤ pH ≤ 13, up to 80°C
- Salt spray resistance internal coating : more than 1500h
- Salt spray resistance external coating : more than 1500h
Coating description
- External coating: Powder Epoxy Resin average dry film thickness 150 microns
- Internal coating: Powder Epoxy Resin average dry film thickness 150 microns
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A2-s1,d0
- Percentage of Recycled Content : 97%
- Recycling Information : Virtually 100% Recyclable
