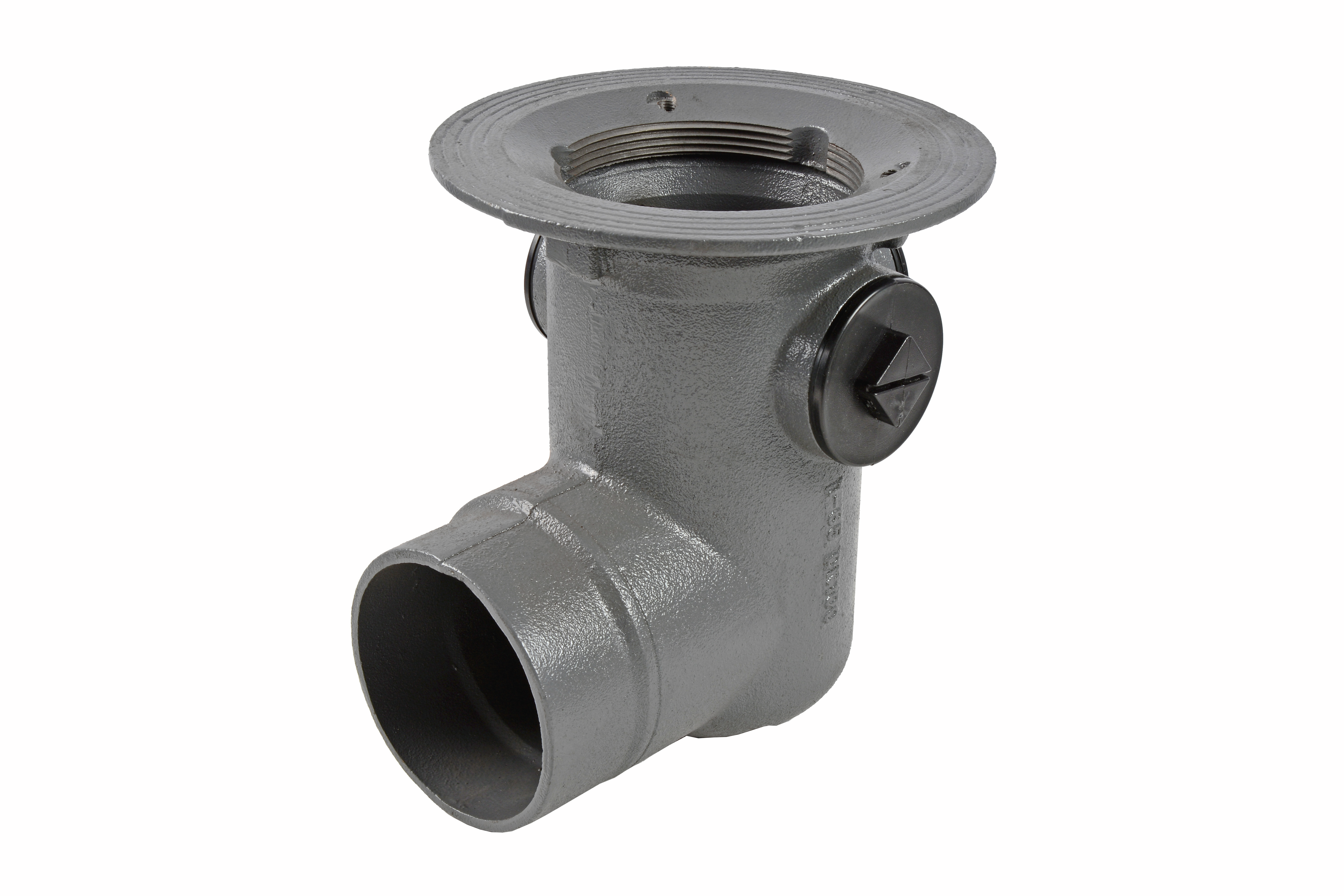

VX-F220 VortX Floor Gully Trapped P 110mm
Code article : 227129
Description
VX-F220 VortX Floor Gully Trapped P 110mm. The VortX cast iron P trap has a unique flange design with 4 identification rings that provides a key for the waterproofing membrane or final floor finish, and has dimples to assist drilling location for fixing to the structural floor removing the requirement for a deck clamp.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 227129 | 110 | - | - | - | - | - | 5.6 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
VX-F220 VortX Floor Gully Trapped P 110mm. The VortX cast iron P trap has a unique flange design with 4 identification rings that provides a key for the waterproofing membrane or final floor finish, and has dimples to assist drilling location for fixing to the structural floor removing the requirement for a deck clamp.
Recommended use :
- Aggressive effluents
- Domestic use
- Fat Wastewater
- Hot effluents
- Rainwater
- Runoff water
- Industrial Wastewater
Major benefits :
The VortX P trap provides a 50mm water seal that prevents the rise of odours and a cleaning plug.
Coating description
- Coating: Grey Epoxy to an average thickness of 70 microns internally/externally.
- Material : Cast Iron
- Industry product standards : BS EN 1253-2
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
