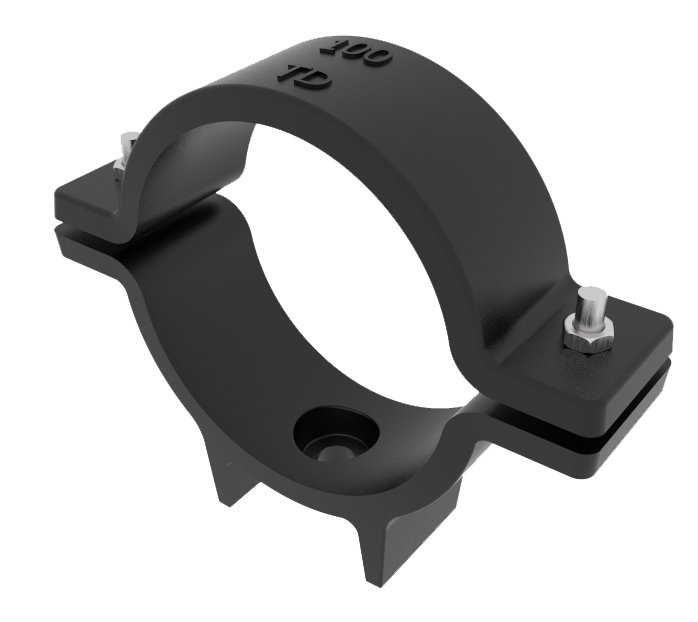

TD640 Bracket Timesaver Drain Hanging or Wall Fixing Cast Iron 100mm

Code article : 191358

Description

Timesaver Drain two-part bracket for restraining cast iron pipe and fitting components to structural elements using M12 all thread fixing rods.

Product variants

Article DN dn Angle Length Height Width Weight
191358 100 - 2.3
191359 150 - 2.8
192374 225 - 4

All dimensions are in mm and nominal weights are in kg

Technical infos & product description

Product description

Timesaver Drain two-part bracket for restraining cast iron pipe and fitting components to structural elements using M12 all thread fixing rods.

Recommended use :

  • Domestic use
  • Fat Wastewater
  • Aggressive effluents
  • Hot effluents
  • Hydrocarbon Wastewater
  • Industrial Wastewater
  • Rainwater
  • Runoff water

Major benefits :

100mm and 150mm are manufactured in cast iron black coated. 225mm are mild steel coated in a red anti-rust primer.

Technical infos

  • Hot water resistance: 24h at 95°C
  • Thermal cycle resistance: 1500 cycles between 15°C and 93°C

Coating description :

  • Coating: Black Water Based Primer to an average thickness of 70microns.
  • Material : Cast Iron
  • Industry product standards : BS437
  • Range Fire Classification : Euroclass A1
  • Acoustic Performance :
  • Percentage of Recycled Content : 97%
  • Recycling Information : Virtually 100% Recyclable
