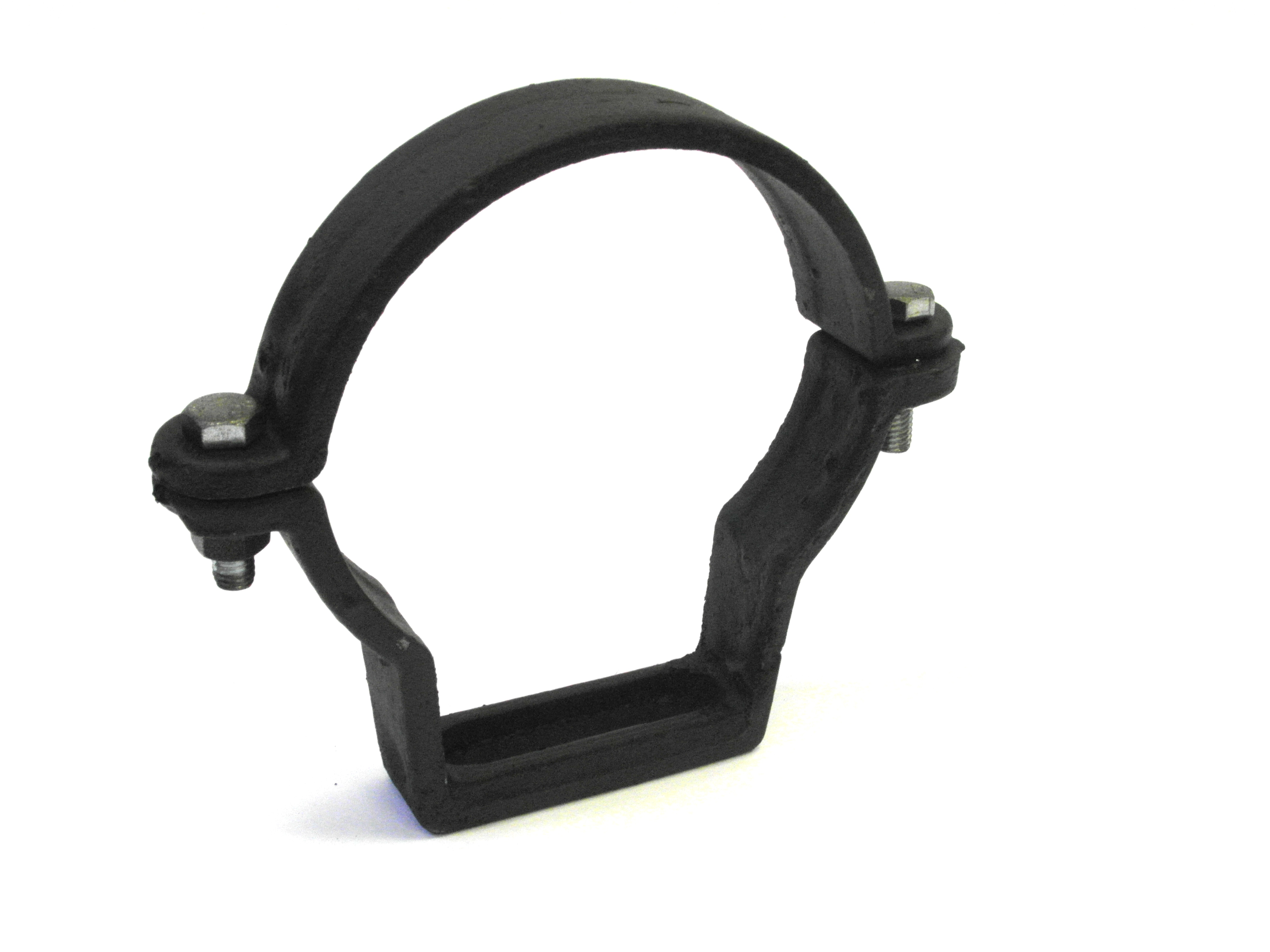

GT48 Bracket Timesaver Soil Wall Fixing 100mm
Code article : 191722
Description
Timesaver soil two-part ductile iron brackets are for restraining vertical or horizontal cast iron pipe and fitting components to structural elements eg, walls and floors.
Product variants
Article | DN | dn | Angle | Length | Height | Width | Weight |
---|---|---|---|---|---|---|---|
191720 | 50 | - | 0.3 | ||||
191721 | 75 | - | 0.5 | ||||
191722 | 100 | - | 0.6 | ||||
191723 | 150 | - | 0.8 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Timesaver soil two-part ductile iron brackets are for restraining vertical or horizontal cast iron pipe and fitting components to structural elements eg, walls and floors.
Recommended use :
- Domestic use
- Fat Wastewater
- Hot effluents
- Hydrocarbon Wastewater
- Industrial Wastewater
- Rainwater
- Runoff water
Major benefits :
The bracket incorporates an elongated slot at the fixing point to ease fixing and allow flexible adjustment.Technical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
- Chemical resistance for 1 ≤ pH ≤ 13, up to 80°C
- Salt spray resistance internal coating : more than 1500h
- Salt spray resistance external coating : more than 1500h
Coating description :
- Coating: Black water based primer to an average thickness of 70 microns.
- Material : Cast Iron
- Industry product standards : BS416 part2
- Range Fire Classification : Euroclass A1
- Acoustic Performance :
- Percentage of Recycled Content : 97%
- Recycling Information : Virtually 100% Recyclable
