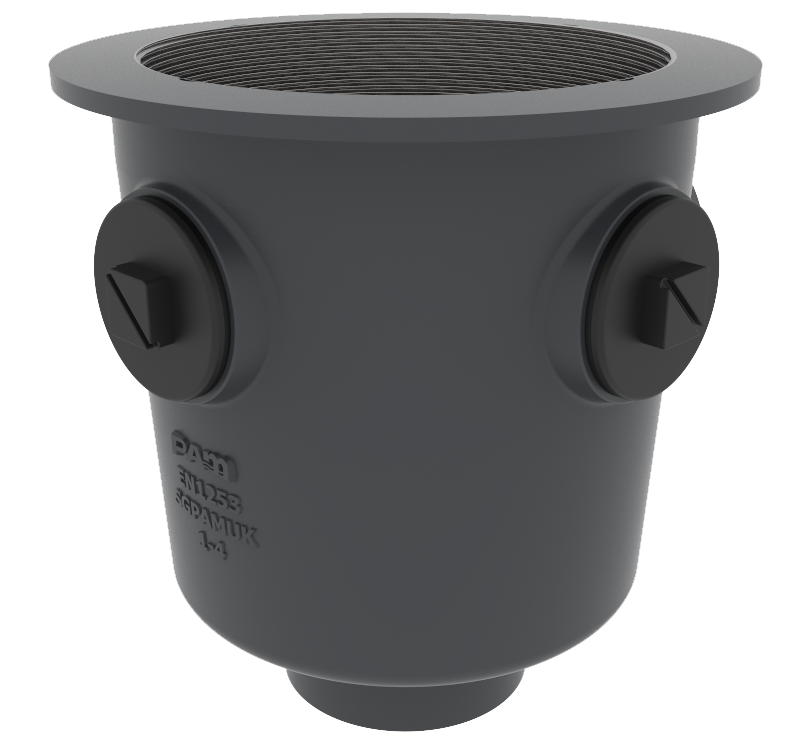

VX-F215 VortX Deep Sump Gully with 3 x 2" BSP Inlets 4" BSP Outlet
Code article : 260385
Description
VX-F215 VortX Deep Sump Gully with 3 x 2" BSP Inlets 4" BSP Outlet. The VortX cast iron deep sump provides a large catchment of surface water through circular access into the pipe network
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 260385 | - | - | - | - | - | - | 11.5 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
VX-F215 VortX Deep Sump Gully with 3 x 2" BSP Inlets 4" BSP Outlet. The VortX cast iron deep sump provides a large catchment of surface water through circular access into the pipe network
Recommended use :
- Aggressive effluents
- Domestic use
- Fat Wastewater
- Hot effluents
- Rainwater
- Runoff water
- Industrial Wastewater
Major benefits :
Body has a NPSM thread that allows connection to all NPSM threaded gratings and rodding eyes in nickel bronze, stainless steel and cast iron.Up to 3 x 2” BSP horizontal inlets – supplied with fitted BSP plugs. Raising pieces VX-F350 can be fitted if further height adjustment. Clamping ring VX-F205 can be fitted for membrane
Coating description
- Coating: Grey Epoxy to an average thickness of 100 microns internally/externally.
- Material : Cast Iron
- Industry product standards : BS EN 1253-2
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
