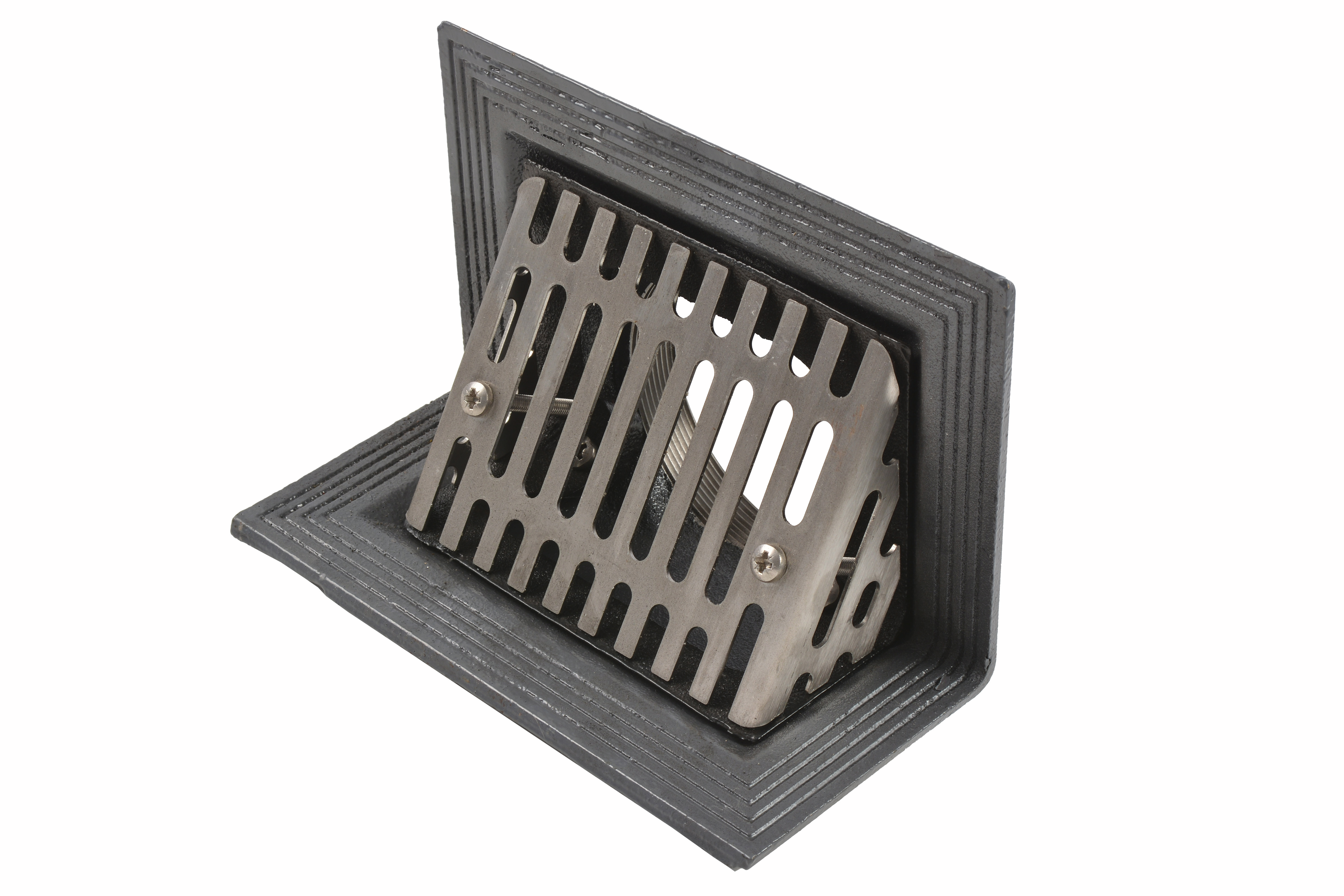

VX-R500 VortX Roof Outlet Two Way with Angled Steel Grate 4" BSP
Code article : 241192
Description
VX-R500 VortX Roof Outlet Two Way with Angled Steel Grate 4" BSP. The VortX cast iron two-way roof drain body has a unique flange design with 4 identification rings that provides a key for the waterproofing membrane or final floor finish, and has dimples to assist drilling location for fixing to the structural deck. For connection to pipework through a barrier which is an extension of the wall at the edge of a roof or terrace, balcony walkway or other structure known as a parapet
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight | 241192 | - | - | - | - | - | - | 6.2 |
|---|
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
VX-R500 VortX Roof Outlet Two Way with Angled Steel Grate 4" BSP. The VortX cast iron two-way roof drain body has a unique flange design with 4 identification rings that provides a key for the waterproofing membrane or final floor finish, and has dimples to assist drilling location for fixing to the structural deck. For connection to pipework through a barrier which is an extension of the wall at the edge of a roof or terrace, balcony walkway or other structure known as a parapet
Recommended use :
- Aggressive effluents
- Domestic use
- Fat wastewater
- Hot effluents
- Rainwater
- Runoff water
- Industrial wastewater
Major benefits :
4” BSP outlet. Use with spigot adaptors VX-F500 / VX-F501 for connection to pipework of various diameters. Cast iron black polyester coated clamping ring for membrane for UV protection. Available with angled / box / flat stainless steel gratings
- Material : Cast Iron
- Industry product standards : BS EN 1253-2
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
