VX-R105 VortX Roof Outlet Vertical with Dome Grate 110mm OD Spigot
Code article : 241181
Description

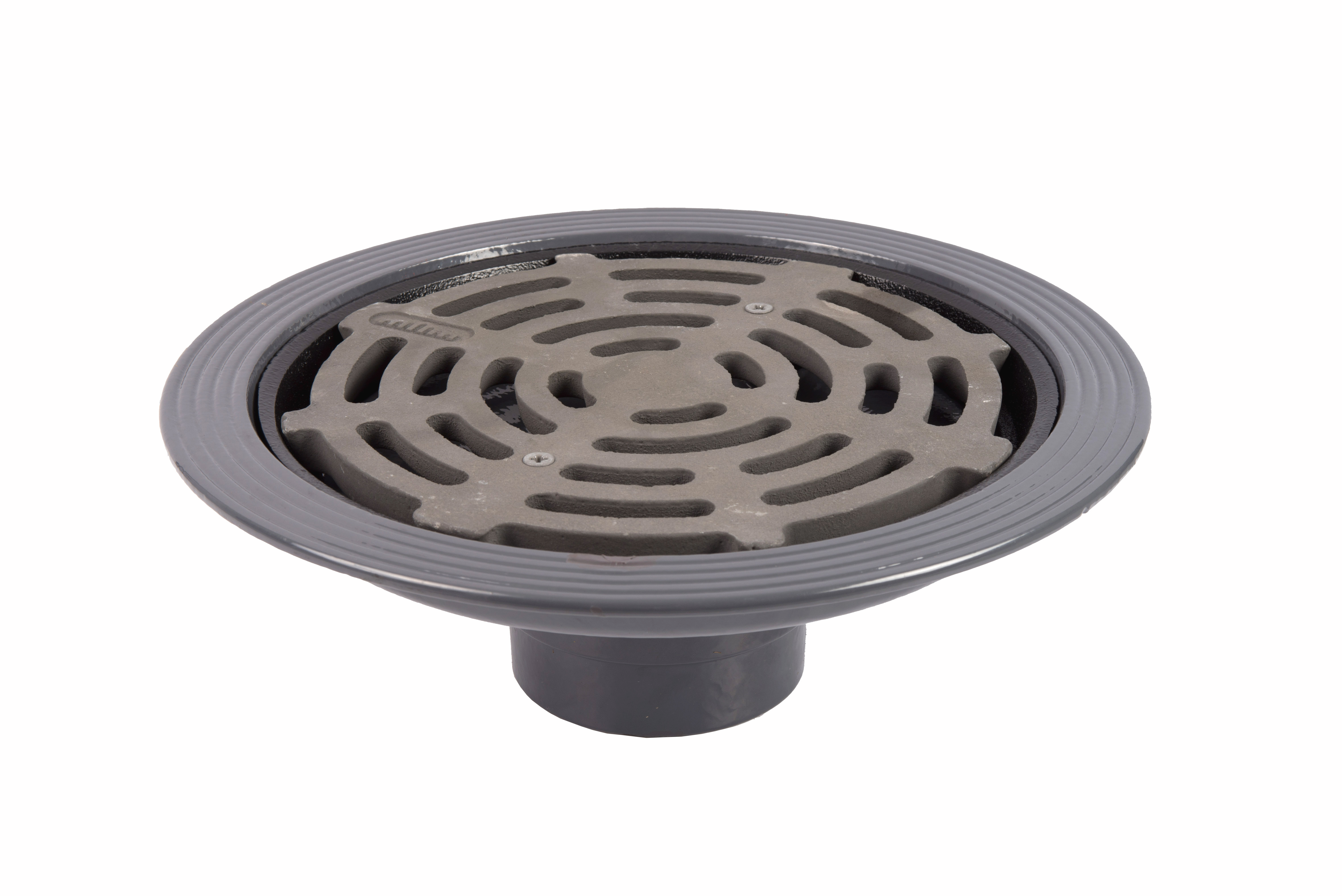

VX-R105 VortX Roof Outlet Vertical with Dome Grate 110mm OD Spigot. The VortX cast iron vertical roof drain body has a unique flange design with 4 identification rings that provides a key for the waterproofing membrane or final floor finish, and has dimples to assist drilling location for fixing to the structural deck. For use with warm or cold roof applications to allow access of water from the roof into a drainage system.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight | 241181 | 110 | - | - | - | - | - | 8.9 |
|---|
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
VX-R105 VortX Roof Outlet Vertical with Dome Grate 110mm OD Spigot. The VortX cast iron vertical roof drain body has a unique flange design with 4 identification rings that provides a key for the waterproofing membrane or final floor finish, and has dimples to assist drilling location for fixing to the structural deck. For use with warm or cold roof applications to allow access of water from the roof into a drainage system.
Recommended use :
- Aggressive effluents
- Domestic use
- Fat wastewater
- Hot effluents
- Rainwater
- Runoff water
- Industrial wastewater
Major benefits :
Vertical roof drain 110mm OD. Cast iron black polyester coated clamping ring for membrane. Cast iron black polyester coated dome grating
- Material : Cast Iron
- Industry product standards : BS EN 1253-2
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
