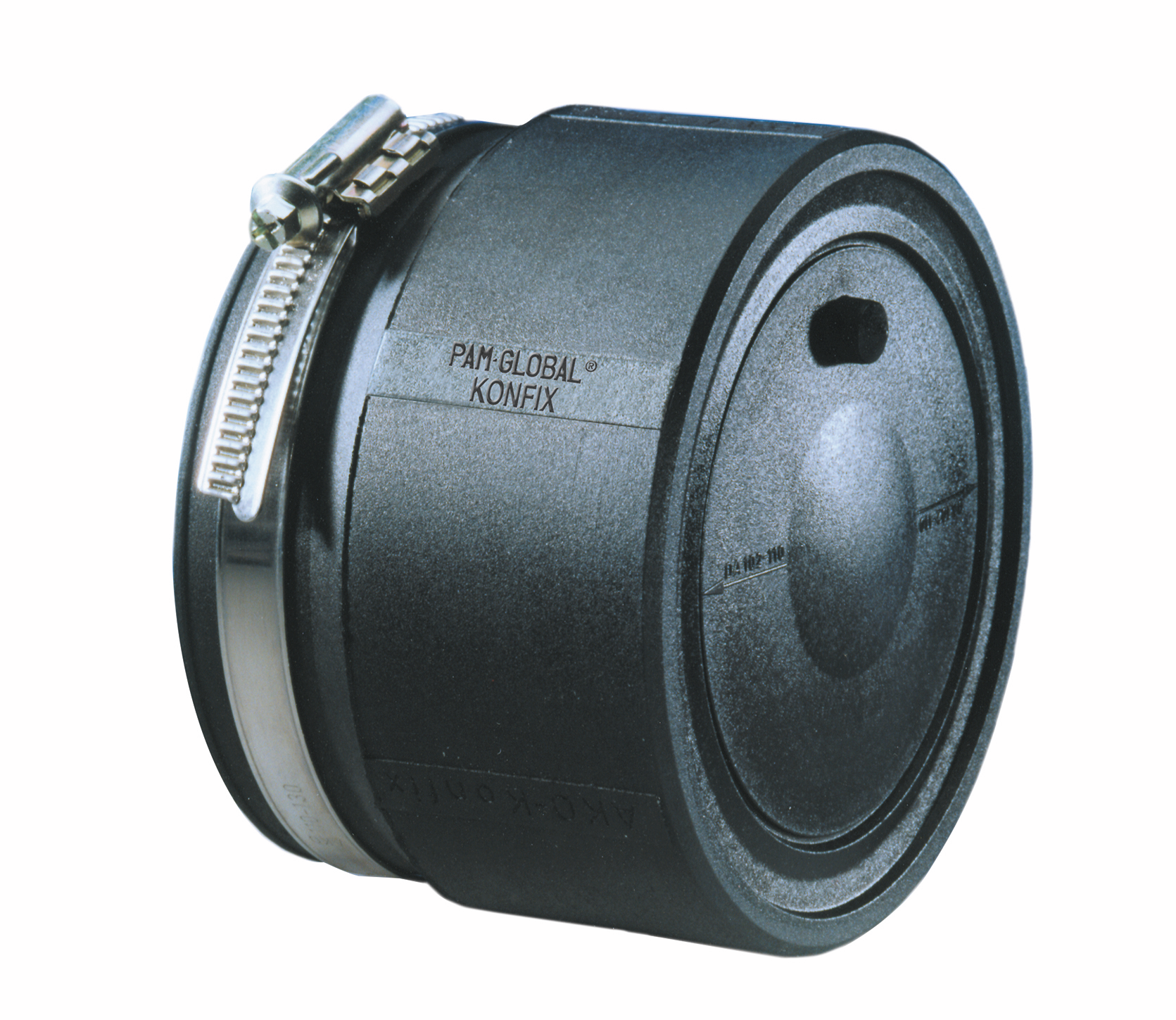

Konfix connector - DN50
Code article : 155759
Description
The Ensign EPDM universal connector is fitted over a 50mm cast iron branch arm to allow the connection of a waste pipe in 40/48/56mm OD.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 155759 | 50 | - | - | 58 | - | - | 0.1 |
| 191581 | 100 | - | - | 185 | 72 | 185 | 2.1 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
The Ensign EPDM universal connector is fitted over a 50mm cast iron branch arm to allow the connection of a waste pipe in 40/48/56mm OD.
Technical infos
- Easiness of installation due to the push-fit assembly system.
- Material : EPDM
- Industry product standards : BS EN 877
