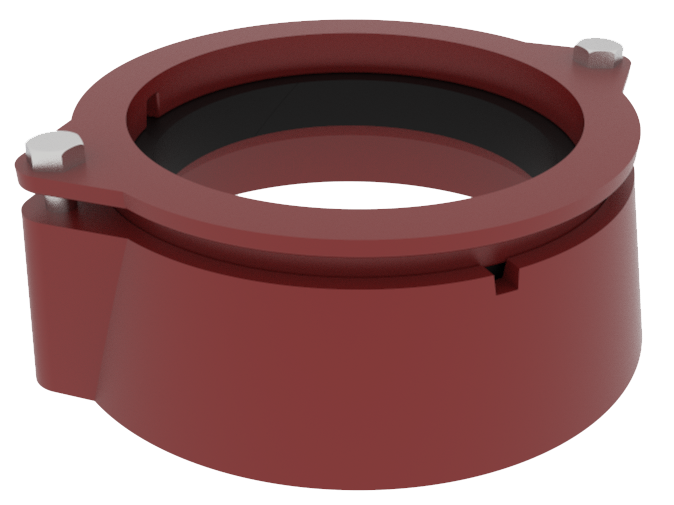

EF073 Connector Ensign Soil Asphalt Roof 100mm
Code article : 191581
Description
The Ensign cast iron roof adaptor provides a water proof seal where the pipe penetrates the asphalt roof membrane.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 155759 | 50 | - | - | 58 | - | - | 0.1 |
| 191581 | 100 | - | - | 185 | 72 | 185 | 2.1 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
The Ensign cast iron roof adaptor provides a water proof seal where the pipe penetrates the asphalt roof membrane.
Recommended use :
- Domestic use
- Fat wastewater
- Hot effluents
- Hydrocarbon wastewater
- Rainwater
- Runoff water
- Industrial wastewater
Major benefits :
The adaptor is slipped over the pipe penetration onto the upraised asphalt supported with a binding wire mesh 150mm from the main roof surface.
Technical infos
- Hot water resistance: 24h at 95°C.
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
- Chemical resistance for 2 ≤ pH ≤ 12.
- Salt spray resistance internal coating: more than 1500 h
Coating description
- External coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
