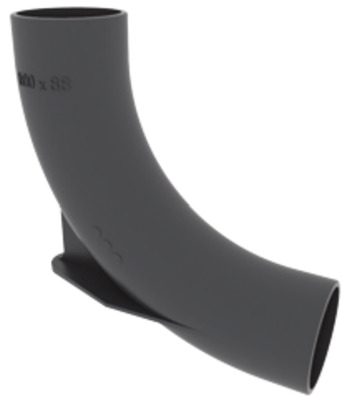

ED007 Bend Ensign Drain Heel Rest 150mm x 88°
Code article : 192290
Description
The Ensign drain cast iron larger radius bend allow a change of direction of the transported fluid, while keeping the quality and the reliability, thanks to the epoxy internal coating.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 192289 | 100 | - | |||||
| 192290 | 150 | - |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
The Ensign drain cast iron larger radius bend allow a change of direction of the transported fluid, while keeping the quality and the reliability, thanks to the epoxy internal coating.
Recommended use :
- Aggressive effluents
- Domestic use
- Fat Wastewater
- Hot effluents
- Industrial Wastewater
- Rainwater
- Runoff water
Major benefits :
A heel rest is provided to give additional support at the base of the stack.Technical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
- Chemical resistance for 1 ≤ pH ≤ 13, up to 80°C
- Salt spray resistance internal coating : more than 1500h
- Salt spray resistance external coating : more than 1500h
Coating description :
- External coating: Powder Epoxy Resin average dry film thickness 150 microns
- Internal coating: Powder Epoxy Resin average dry film thickness 150 microns
- Material : Cast Iron
- Industry product standards : BS EN877
- Range Fire Classification : Euroclass A2-s1,d0
- Acoustic Performance : Cast Iron performance Best in class Lsc ≤ 10 dB(A) & LaA = 47 dB(A) according to EN 14366 with 2L/s
- Percentage of Recycled Content : 97%
- Recycling Information : Virtually 100% Recyclable
