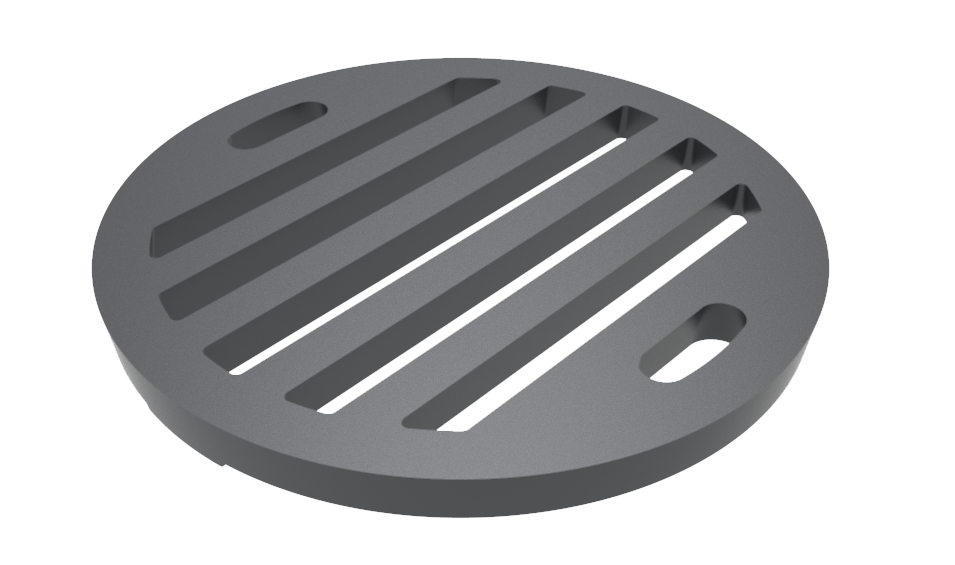

ED065 Plain Grating Ensign Drain to suit Bellmouth Gully Inlet 200mm
Code article : 191828
Description
Ensign drain cast iron bellmouth gully inlet body only that allows access to the below ground pipe system for cleaning and rodding purposes.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 191828 | 200 | - | - | - | - | - | 1.8 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Ensign drain cast iron bellmouth gully inlet body only that allows access to the below ground pipe system for cleaning and rodding purposes.
Recommended use :
- Aggressive effluents
- Domestic use
- Fat Wastewater
- Hot effluents
- Industrial Wastewater
- Rainwater
- Runoff water
Major benefits :
The gully is fitted with a solid cover and gasket to ensure non entry of debris and surface water, and prevent odours escaping into the atmosphere.
Technical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
- Chemical resistance for 1 ≤ pH ≤ 13, up to 80°C
- Salt spray resistance internal coating : more than 1500h
- Salt spray resistance external coating : more than 1500h
Coating description
- External coating: Powder Epoxy Resin average dry film thickness 150 microns
- Internal coating: Powder Epoxy Resin average dry film thickness 150 microns
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A2-s1,d0
- Percentage of Recycled Content : 97%
- Recycling Information : Virtually 100% Recyclable
