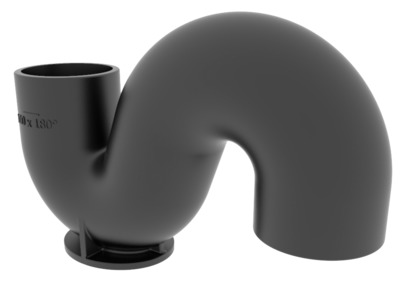

TD550 Gully Trap Timesaver Drain Deans 600mm x 100mm x 87.5°

Article	DN	dn	Angle	Length	Height	Width	Weight
191407	100		-				55.4

All dimensions are in mm and nominal weights are in kg

Product description

The Timesaver Drain Deans gully trap allows for a large catchment of surface water through circular access that provides a 50mm water seal that prevents the rise of odours into a 100mm DN pipe network.

Recommended use :

• Domestic use
• Fat Wastewater
• Aggressive effluents
• Hot effluents
• Hydrocarbon Wastewater
• Industrial Wastewater
• Rainwater
• Runoff water

Major benefits :

Can be used with Timesaver Drain cast iron raising pieces

Technical infos

• Hot water resistance: 24h at 95°C
• Thermal cycle resistance: 1500 cycles between 15°C and 93°C

Coating description :

• Coating: Black Water Based Primer to an average thickness of 70microns.

• Material : Cast Iron
• Industry product standards : BS437
• Range Fire Classification : Euroclass A2-s1,d0
• Acoustic Performance :
• Percentage of Recycled Content : 99%
• Recycling Information : Virtually 100% Recyclable
