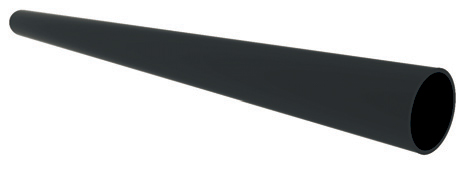

A585 Pipe RW Classical Plus Round Plain Barrel 75mm x 1750mm
Code article : 192559
Description
Prepainted in high performance semi gloss black paint. Classical cast iron circular spigoted pipes for the vertical discharge of rainwater from a building into the below ground drainage network.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 192558 | 65 | - | - | 1750 | 74 | 74 | 9 |
| 192559 | 75 | - | - | 1750 | 83 | 83 | 11 |
| 192560 | 100 | - | - | 1750 | 110 | 110 | 14 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Prepainted in high performance semi gloss black paint. Classical cast iron circular spigoted pipes for the vertical discharge of rainwater from a building into the below ground drainage network.
Recommended use :
- Rainwater
- Runoff water
Major benefits :
Centrifually spun to ensure consistency throughout the pipe length. 1750mm in length. Tested to 1500 hours salt spray and ultra-violet resistant. Product wrapped for protection during delivery. Pipes are 1750mm in length often used for a cost effective solution to make offcuts or short length pieces. Used with cast iron loose pipe sockets A586 which are available with fixing ears to allow the pipe to be attached to the building structure using pipe nails or fixing screws or with loose pipe sockets without fixing ears which are fixed using additional brackets in mild steel. Pipe spigots are not sealed into the sockets to allow the rainwater to escape in the case of a blockage.
Technical infos
- Classical products coated in PPA571 have been salt spray and ultra-violet resistance tested for up to 1500 hours.
Coating description
- Coating: Black semi-gloss RAL 9005 700 as standard to an average thickness of 200 microns.
- Material : Cast Iron
- Industry product standards : BS 460
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
