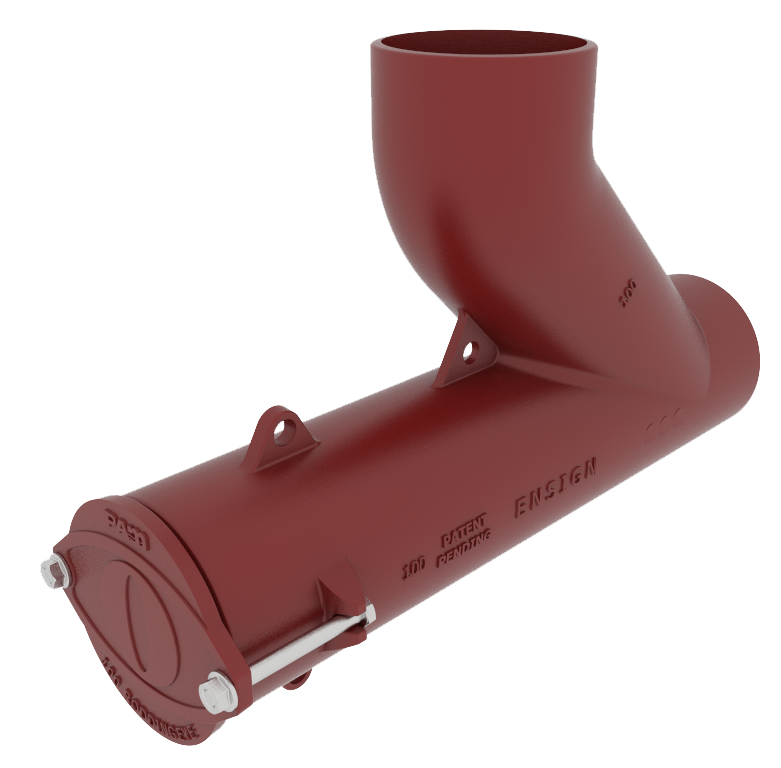

EF009 Branch Ensign Soil Rodding 100mm x 88°
Code article : 266135
Description
Ensign cast iron soil range single branch that allows the change of direction from horizontal pipe run to the vertical stack at 88. Positioned at the end of suspended pipe runs that terminates after the change of direction, the branch provides a single fitting solution as a cost effective alternative to 8 traditional assembled components – saving 60% installation time.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 266135 | 100 | - | - | - | - | - | - |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Ensign cast iron soil range single branch that allows the change of direction from horizontal pipe run to the vertical stack at 88. Positioned at the end of suspended pipe runs that terminates after the change of direction, the branch provides a single fitting solution as a cost effective alternative to 8 traditional assembled components – saving 60% installation time.
Recommended use :
- Domestic use
- Fat Wastewater
- Hot effluents
- Hydrocarbon Wastewater
- Rainwater
- Runoff water
- Industrial Wastewater
- Wastewater
- High pressure
Major benefits :
The rodding branch is fitted with an end plate which is capable of withstanding 5 bar accidental static water pressure, and can be removed to allow access for rodding clear any debris or blockages.
Technical infos
- Hot water resistance: 24h at 95°C.
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
- Chemical resistance for 2 ≤ pH ≤ 12.
- Salt spray resistance internal coating: more than 1500 h
Coating description
- External coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
