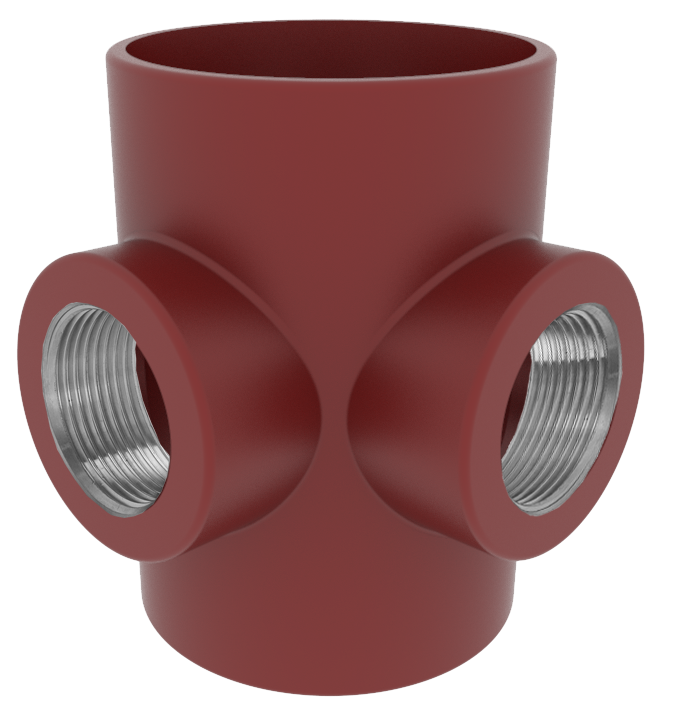

EF092T Boss Pipe D/T 2" BSPT at 70mm x 90°
Code article : 245545
Description
The Ensign cast iron boss pipes provide simple solutions for connecting two plastic / copper waste pipes opposed or at 90° to the vertical soil stack
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 245545 | 70 | - | - | - | - | - | 1.7 |
| 191850 | 100 | - | - | - | - | - | 2.9 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
The Ensign cast iron boss pipes provide simple solutions for connecting two plastic / copper waste pipes opposed or at 90° to the vertical soil stack
Recommended use :
- Domestic use
- Fat wastewater
- Hot effluents
- Hydrocarbon wastewater
- Rainwater
- Runoff water
- Industrial wastewater
Major benefits :
· Push-fit connection inserting the waste pipe into a compression fit clamp flange; . BSP connection using a 2” BSP male iron adaptor.
Technical infos
- Hot water resistance: 24h at 95°C.
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
- Chemical resistance for 2 ≤ pH ≤ 12.
- Salt spray resistance internal coating: more than 1500 h
Coating description
- External coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns.
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
