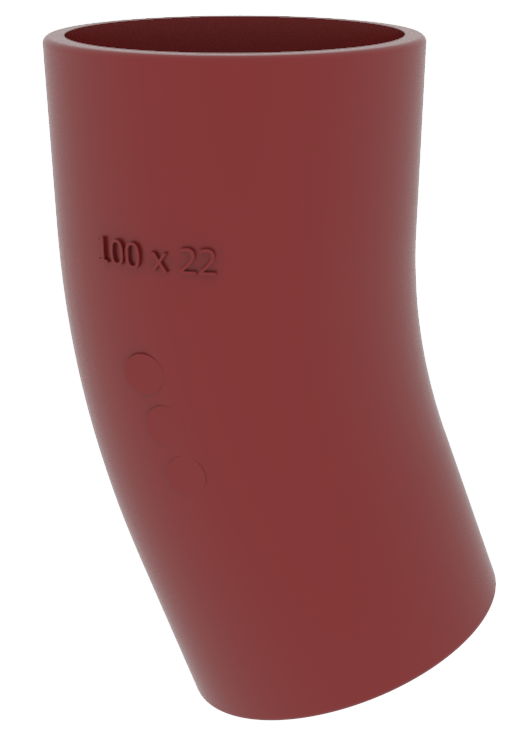

EF02L Bend Ensign Soil Long Radius 100mm x 22°
Code article : 191548
Description
The Ensign cast iron large radius bends allow a change of direction of the transported fluid, while keeping the quality and the reliability, thanks to the epoxy internal coating.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 191548 | 100 | - | 22 | 143 | 215 | 110 | 1.7 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
The Ensign cast iron large radius bends allow a change of direction of the transported fluid, while keeping the quality and the reliability, thanks to the epoxy internal coating.
Recommended use :
- Domestic use
- Fat Wastewater
- Hot effluents
- Hydrocarbon Wastewater
- Rainwater
- Runoff water
- Industrial Wastewater
- High pressure
- Wastewater
Major benefits :
The Ensign drain cast iron larger radius bends allow a change of direction of the transported fluid, while keeping the quality and the reliability, thanks to the epoxy internal coating.
Technical infos
Hot water resistance: 24h at 95°C.Thermal cycle resistance: 1500 cycles between 15°C and 93°C.Chemical resistance for 2 ≤ pH ≤ 12.Salt spray resistance internal coating: more than 1500 h
Coating description
- External coating: Red powder Epoxy Resin average dry film thickness 70 microns
- Internal coating: Red powder Epoxy Resin average dry film thickness 70 microns
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A1
- Percentage of Recycled Content : 97%
- Recycling Information : Fully recyclable
