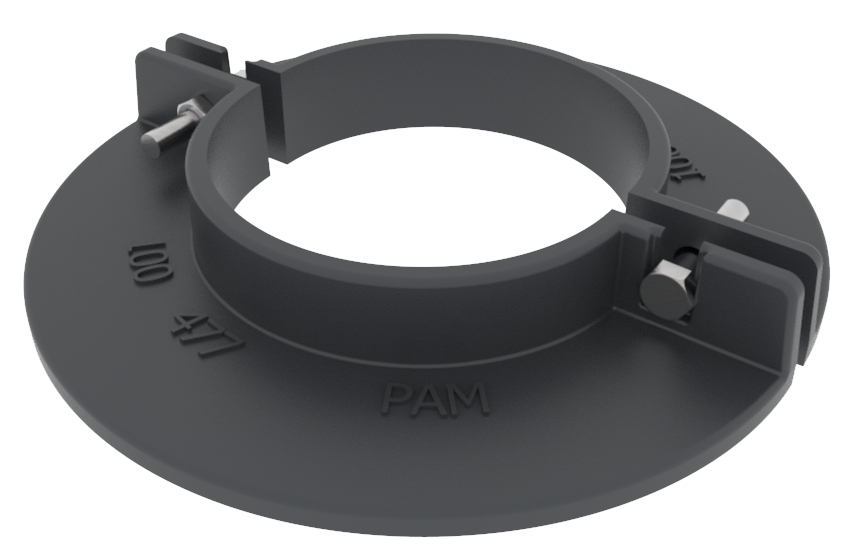

ED078 Puddle Flange Ensign Drain 100mm
Code article : 191829
Description
Ensign drain cast iron puddle flanges used where pipes pass through external walls in basement areas. They reduce the risk of water entering the building by capillary action when installed in a water retaining structure.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 191829 | 100 | - | - | - | - | - | 4.6 |
| 191830 | 150 | - | - | - | - | - | 6.6 |
| 192318 | 250 | - | - | - | - | - | 13 |
| 192319 | 300 | - | - | - | - | - | 20.01 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Ensign drain cast iron puddle flanges used where pipes pass through external walls in basement areas. They reduce the risk of water entering the building by capillary action when installed in a water retaining structure.
Recommended use :
- Aggressive effluents
- Domestic use
- Fat Wastewater
- Hot effluents
- Industrial Wastewater
- Rainwater
- Runoff water
Major benefits :
The two-piece loose puddle flange is bolted onto the pipe and sleeve once it has been bedded on Denso tape or similar.
Technical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
- Chemical resistance for 1 ≤ pH ≤ 13, up to 80°C
- Salt spray resistance internal coating : more than 1500h
- Salt spray resistance external coating : more than 1500h
Coating description
- External coating: Powder Epoxy Resin average dry film thickness 150 microns
- Internal coating: Powder Epoxy Resin average dry film thickness 150 microns
- Material : Cast Iron
- Industry product standards : BS EN 877
- Range Fire Classification :
Euroclass A2-s1,d0
- Percentage of Recycled Content : 97%
- Recycling Information : Virtually 100% Recyclable
