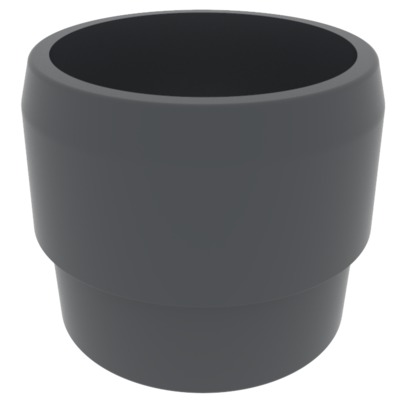

ED076 Connector Ensign Drain Ensign to Supersleve 100mm
Code article : 191813
Description
100 Supersleve can be connected to Ensign by using an ED076 adaptor and an ED001 coupling.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 191813 | 100 | - | 110 | 100 | 110 | 1.8 | |
| 191814 | 150 | - | 135 | 125 | 135 | 4.2 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
100 Supersleve can be connected to Ensign by using an ED076 adaptor and an ED001 coupling.
Recommended use :
- Aggressive effluents
- Domestic use
- Fat Wastewater
- Hot effluents
- Industrial Wastewater
- Rainwater
- Runoff water
Major benefits :
100 Hepsleve can be connectd to Ensign by using an ED076 adaptor and an ED001 coupling in conjuction with Supersleve/ Hepsleve transitional coupling manufactured by Hepworth.Technical infos
- Hot water resistance: 24h at 95°C
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C
- Chemical resistance for 1 ≤ pH ≤ 13, up to 80°C
- Salt spray resistance internal coating : more than 1500h
- Salt spray resistance external coating : more than 1500h
Coating description :
- External coating: Powder Epoxy Resin average dry film thickness 150 microns
- Internal coating: Powder Epoxy Resin average dry film thickness 150 microns
- Material : Cast Iron
- Industry product standards : BS EN877
- Range Fire Classification : Euroclass A2-s1,d0
- Acoustic Performance : Cast Iron performance Best in class Lsc ≤ 10 dB(A) & LaA = 47 dB(A) according to EN 14366 with 2L/s
- Percentage of Recycled Content : 97%
- Recycling Information : Virtually 100% Recyclable
