About the solution
Description

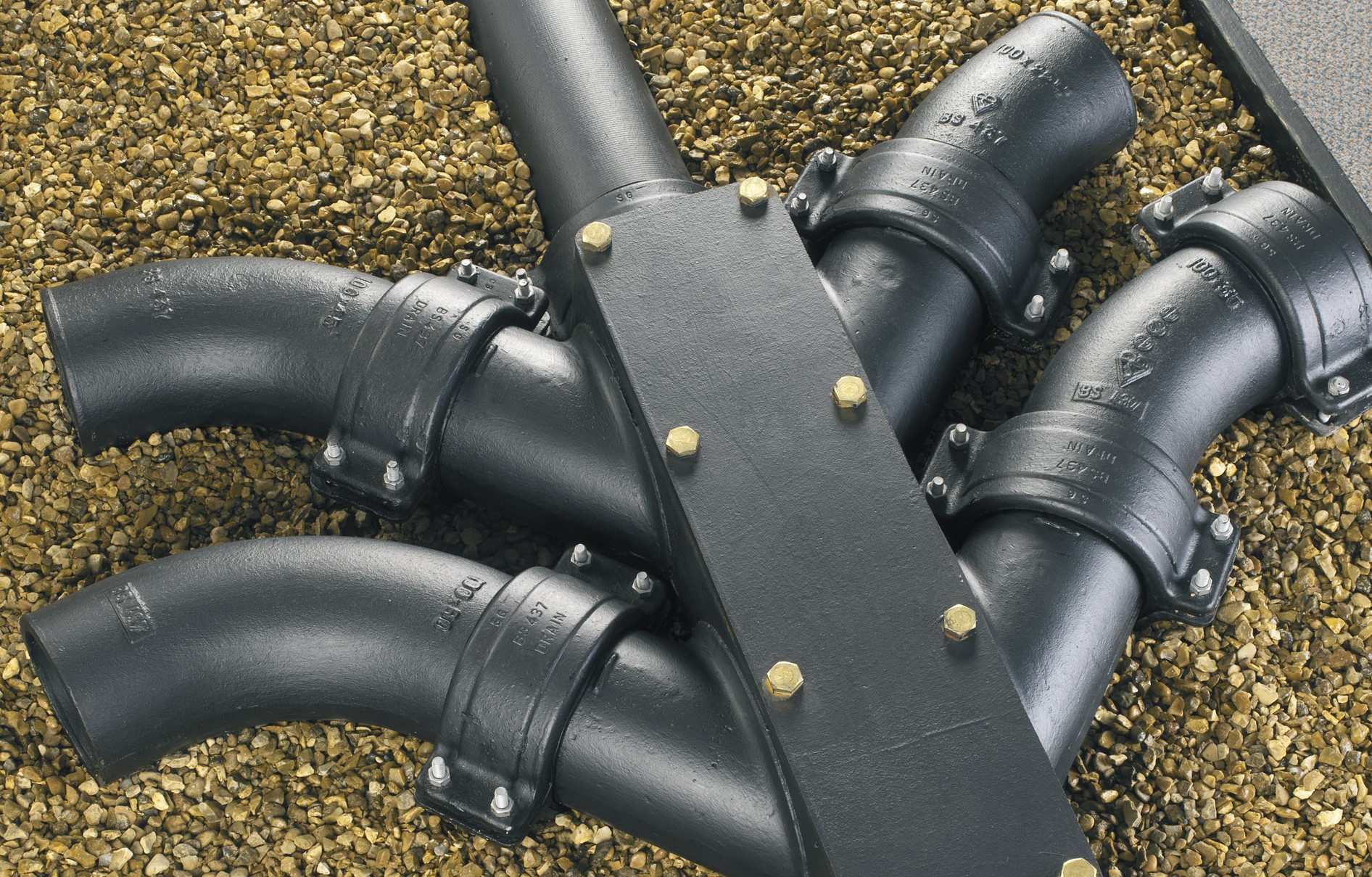

The Timesaver drain cast iron below ground system has been the first choice for under-building drainage for commercial, public and residential buildings since 1980.
- Cast iron has the proven strength and crush resistance to withstand the weight of the concrete and remain robust during the pouring process unlike the more volatile lighter-weight plastic materials which can require filling to weigh them down.
- Cast iron is not affected by the high temperatures generated during the pouring and curing process—which can reach temperatures in excess of 70°, depending on the volume of concrete.
- The cost of failure can be very high if concrete slabs require digging up to repair drainage failures.
Recommended Use
- Underbuilding drainage—encased in concrete
- Pipework to be laid in shallow trenches
- Under roads
- Unstable ground
- Ground containing methane
- Bridges
Dimensions
- 100, 150 and 225mm diameter pipes and fittings
- Two-piece ductile iron couplings
- Section thickness from 8-15mm
About the solution
Description
The Timesaver drain cast iron below ground system has been the first choice for under-building drainage for commercial, public and residential buildings since 1980.
- Cast iron has the proven strength and crush resistance to withstand the weight of the concrete and remain robust during the pouring process unlike the more volatile lighter-weight plastic materials which can require filling to weigh them down.
- Cast iron is not affected by the high temperatures generated during the pouring and curing process—which can reach temperatures in excess of 70°, depending on the volume of concrete.
- The cost of failure can be very high if concrete slabs require digging up to repair drainage failures.
Recommended Use
- Underbuilding drainage—encased in concrete
- Pipework to be laid in shallow trenches
- Under roads
- Unstable ground
- Ground containing methane
- Bridges
Dimensions
- 100, 150 and 225mm diameter pipes and fittings
- Two-piece ductile iron couplings
- Section thickness from 8-15mm
MAJOR BENEFITS
Exceptional crush resistance—vastly superior to other materials
To withstand over vigorous rodding/jetting
Can be installed where ground is unstable
Can be installed in shallow trenches
Less bedding materials required saving cost
Fit and forget peace of mind
Exceptional service life
COATINGS
Pipes
- External coating: Black, anti-corrosive acrylic primer paint, average dry film thickness 40.
- Cast-iron made with the De Lavaud process
- Internal coating: Two-component ochre-coloured epoxy coating, average dry film thickness of 130.
Fittings
Water-based Primer (IL 3036) to an average thickness of 40 µm.
COATINGS
Pipes
- External coating: Black, anti-corrosive acrylic primer paint, average dry film thickness 40.
- Cast-iron made with the De Lavaud process
- Internal coating: Two-component ochre-coloured epoxy coating, average dry film thickness of 130.
Fittings
Water-based Primer (IL 3036) to an average thickness of 40 µm.
